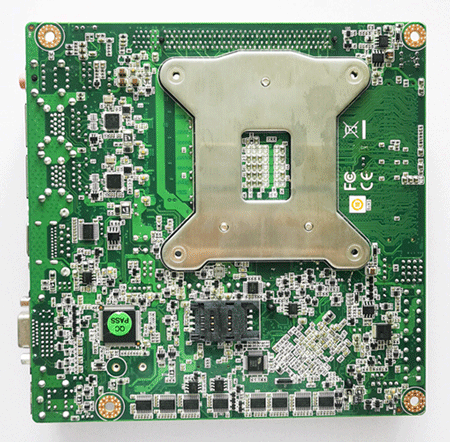

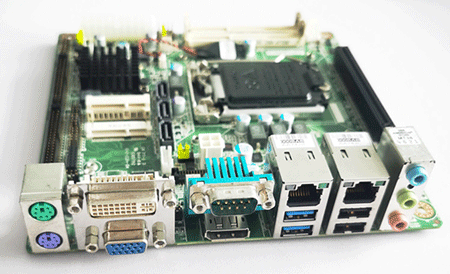

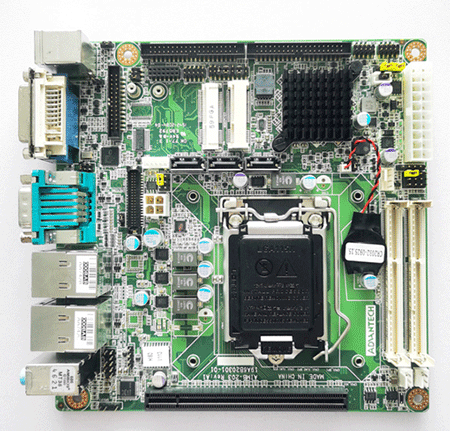

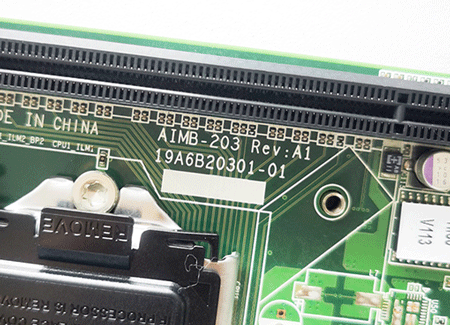

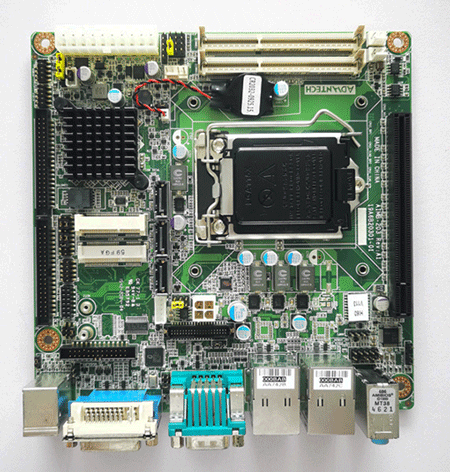

AIMB-203 REV.A1 19A6B20301-01

产品分类：COMe模块
1、支持Intel ®第四代Core™i处理器（LGA1150),搭载H81芯片组
2、2 204-pin SO-DIMM，最大支持16GB DDR3 1600 MHz SDRAM
3、支持CRT/DVI-D/DP++/LVDS
4、支持PCIe x 16（Gen 2）和2 mini PCIe
5、支持SUSIAccess 和嵌入式软件API
