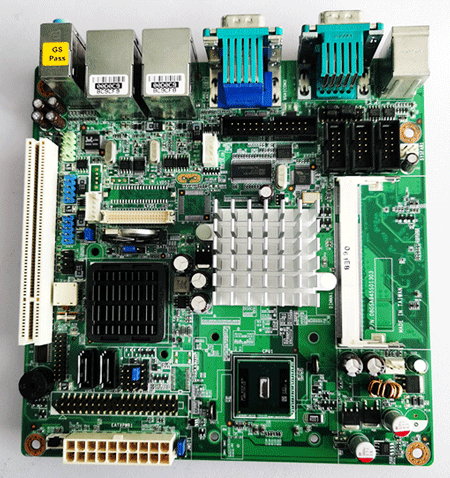

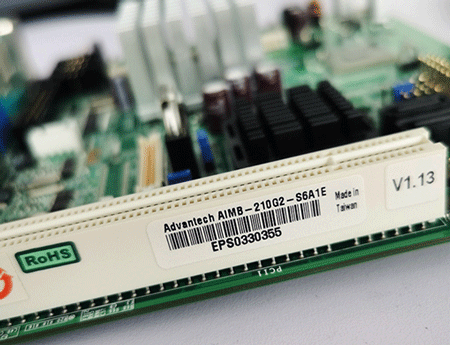

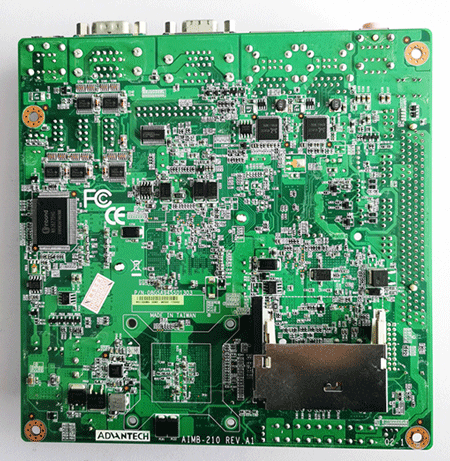

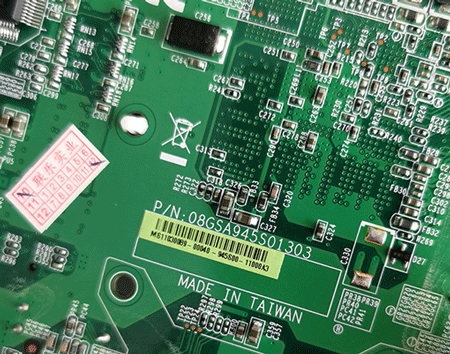

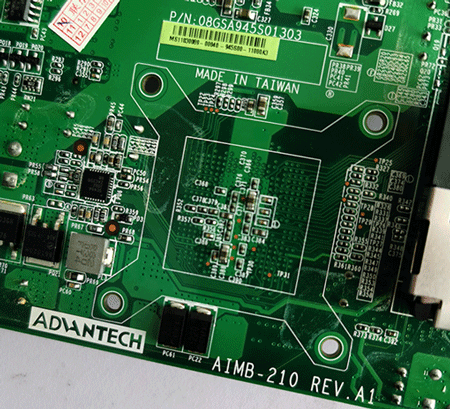

AIMB-210 REV.A1 P/N:08GSA945S01303 AIMB-210G2-S6A1E Intel® Atom™ N270 Mini-ITX withCRT/LVDS, 6 COM, and Dual LAN

产品分类：COMe模块
1、® Atom™ Mini-ITX motherboard supports N270 1.6 GHz processor
2、One 200-pin SODIMM up to 2 GB DDR2 533 MHz SDRAM
3、 Supports dual display for CRT, LVDS, and TV-Out

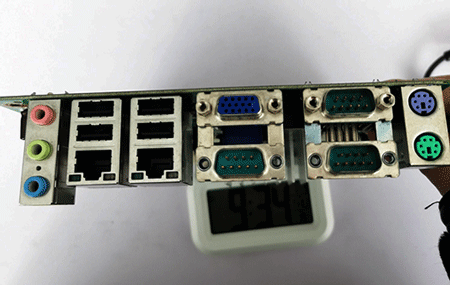

4、 6 serial ports, 8 USB ports, CF, 2 LAN ports and TPM1.2 (optional)
5、Supports SUSIAccess and Embedded Software APIs
