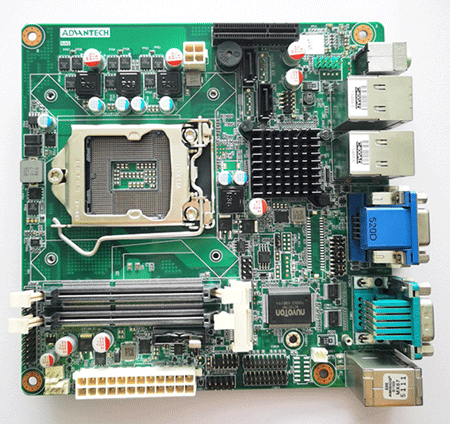

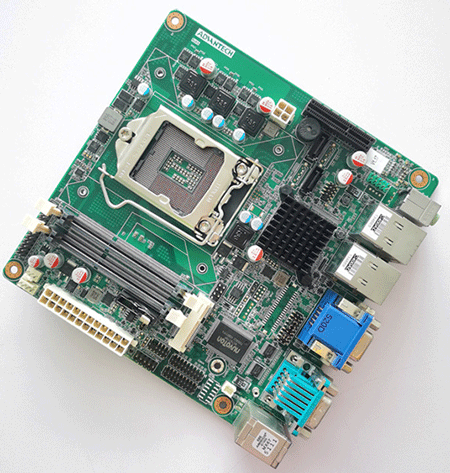

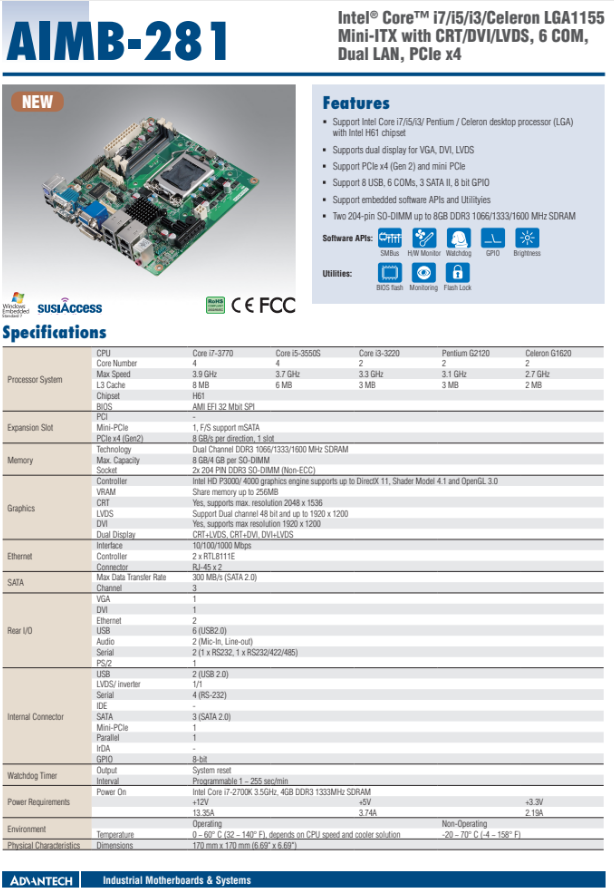

AIMB-281 REV A1 Intel® Core™ i7/i5/i3/Celeron LGA1155Mini-ITX with CRT/DVI/LVDS, 6 COM,Dual LAN, PCIe x4

产品分类：COMe模块
1、Support Intel Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA)with Intel H61 chipset

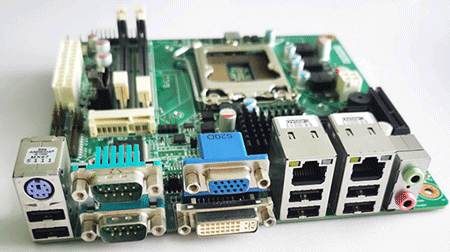

2、Supports dual display for VGA, DVI, LVDS
3、 Support PCIe x4 (Gen 2) and mini PCIe
4、Support 8 USB, 6 COMs, 3 SATA II, 8 bit GPIO
5、 Support embedded software APIs and Utilityies
6、 Two 204-pin SO-DIMM up to 8GB DDR3 1066/1333/1600 MHz SDRAM
