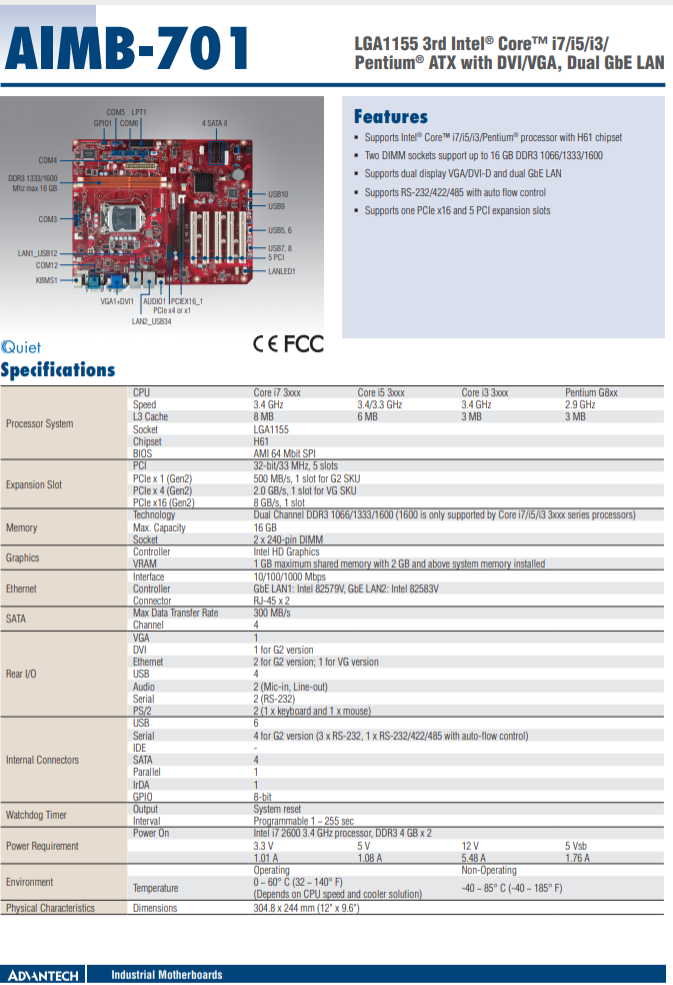

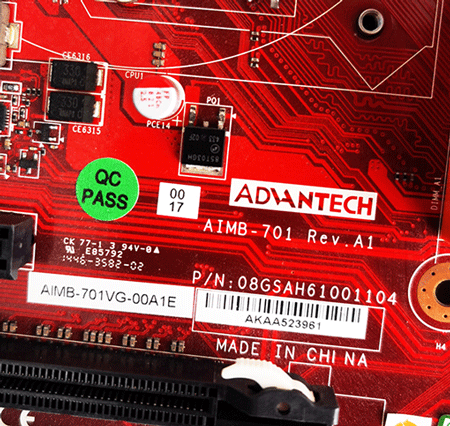

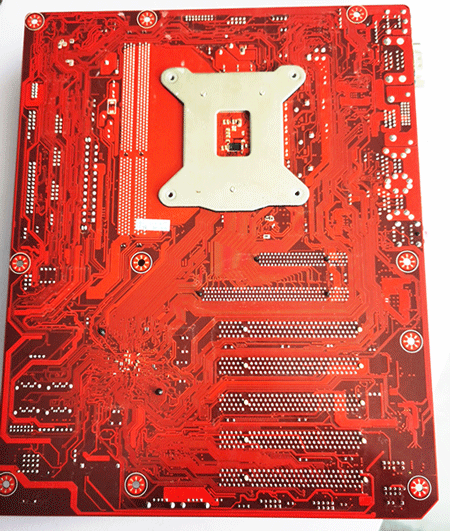

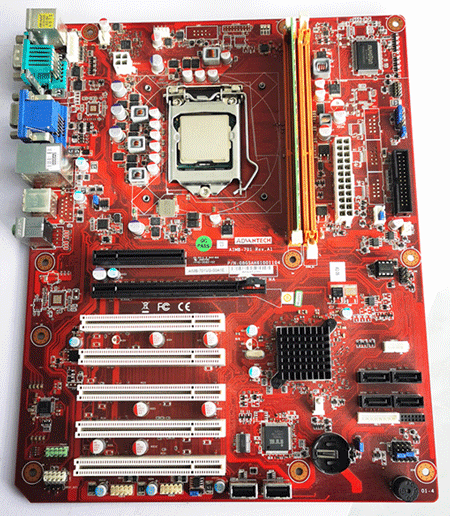

AIMB-701 REV A1 AIMB701VG00A1E P/N:08GSAH61001104 LGA1155 3rd Intel® Core™ i7/i5/i3/Pentium® ATX with DVI/VGA, Dual GbE LAN

产品分类：COMe模块
1、Supports Intel® Core™ i7/i5/i3/Pentium® processor with H61 chipset
2、 Two DIMM sockets support up to 16 GB DDR3 1066/1333/1600
3、Supports dual display VGA/DVI-D and dual GbE LAN
4、Supports RS-232/422/485 with auto flow control
5、 Supports one PCIe x16 and 5 PCI expansion slots
