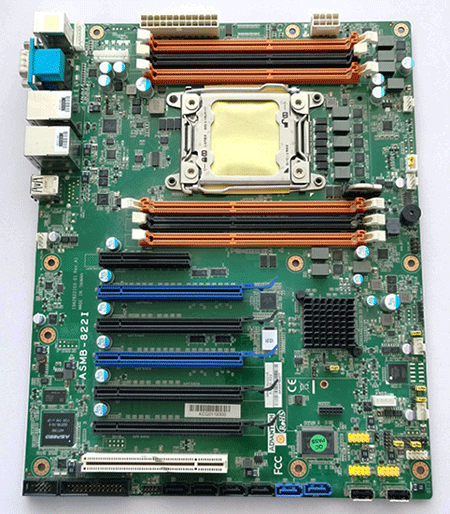

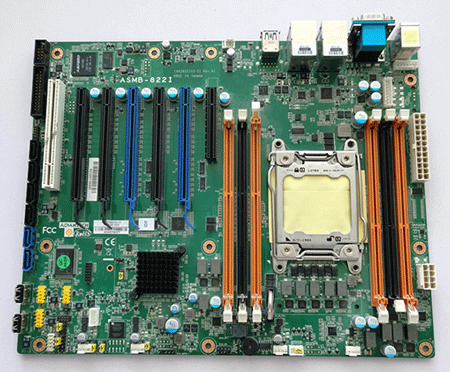

ASMB-822I REV A1 19A2822103-01 AIMB-822I REV A1 Intel E5-2600(v2)Series Single Processor ATX Server Board

产品分类：COMe模块
1、Intel E5-2600(v2) processor support: ASMB-822I supports one Intel E5-2600(v2) series Quad/Six/Eight/Ten core processors.
2、High performance I/O capability: Dual Gigabit LAN, five PCIe x16 (x8 link)slots, 6 SATA connectors and 12 USB 2.0 ports.
3、Standard ATX form factor with industrial features: ASMB-822I providesindustrial features like long product lifecycle, reliable operation under wide temperature range, watchdog timer, etc.
4、 IPMI 2.0 support: ASMB-822I equipped with Aspeed 2300 BMC chip supportsIPMI 2.0 (Intelligent Platform Management Interface 2.0) via dedicated LANport.
5、 KVM over IP: ASMB-822I KVM over IP function allows remote control of systemthrough your own computer.
