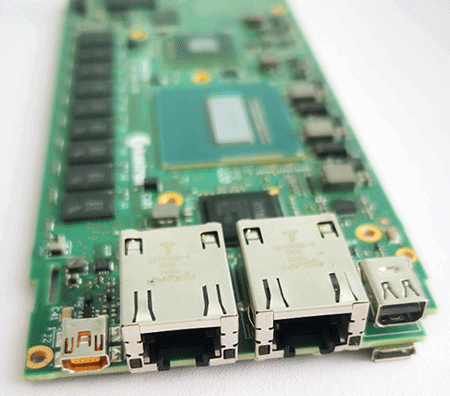

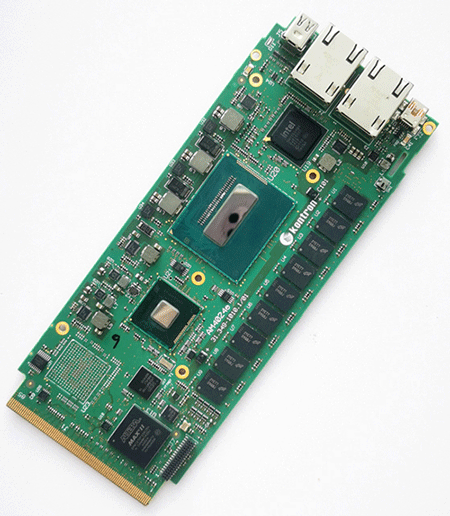

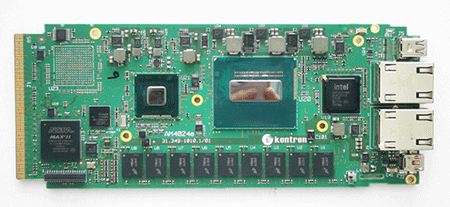

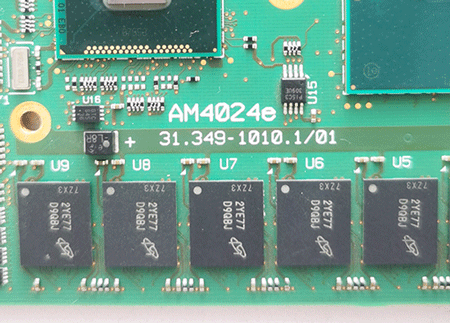

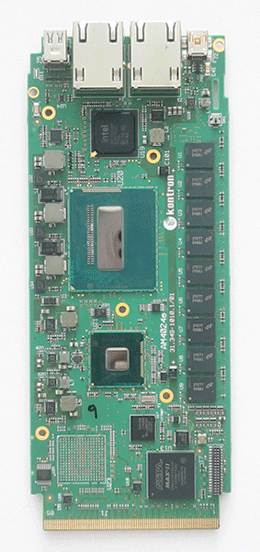

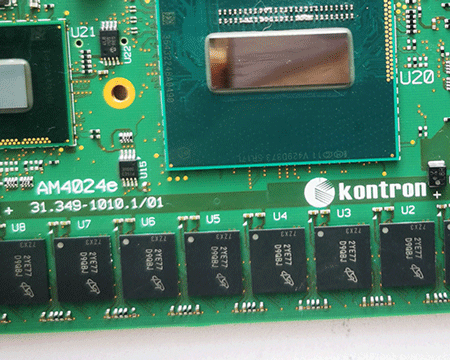

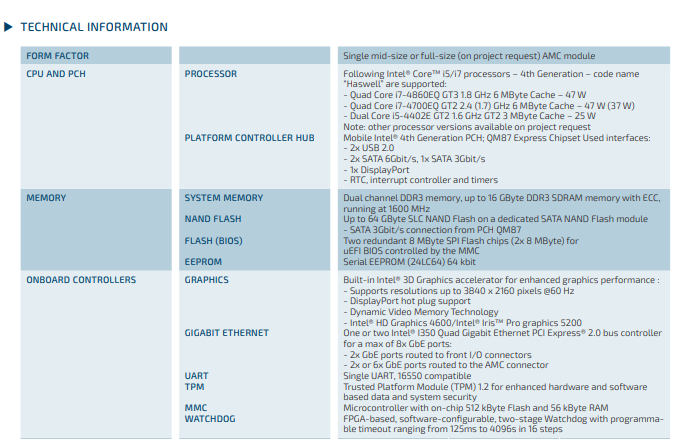

AM4024-AM4024e AdvancedMC module based on 4th Generation Intel® Core™ processor-technology Specifications

产品分类：COMe模块
AMC Processor Module, Single-module, Mid-size (Full-size on request)
4-core 1.8 GHz Intel® Core™ i7-4860EQ processor with Iris Pro GPU
1、4-core 2.4 GHz Intel® Core™ i7-4700EQ processor
2、Up to 16 GByte SDRAM memory (soldered) running at 1600 MHz with ECC
3、Up to 64 GByte SATA NAND Flash memory module
4、Up to 8 GbE Ethernet interfaces
5、Comprehensive front panel I/O interfaces
