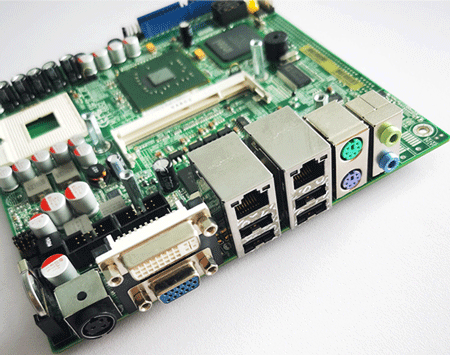

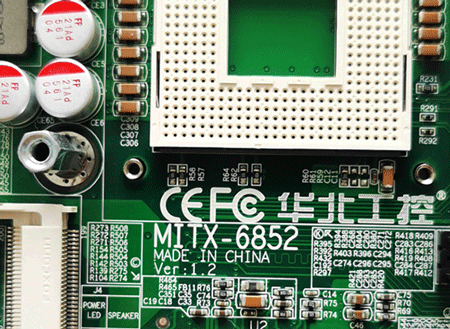

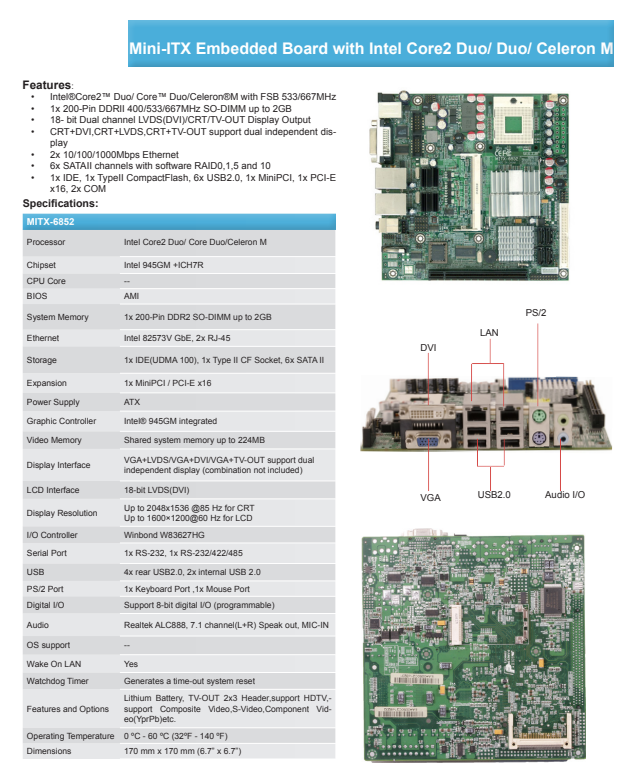

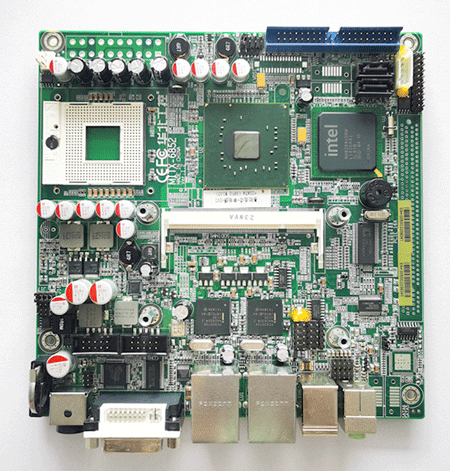

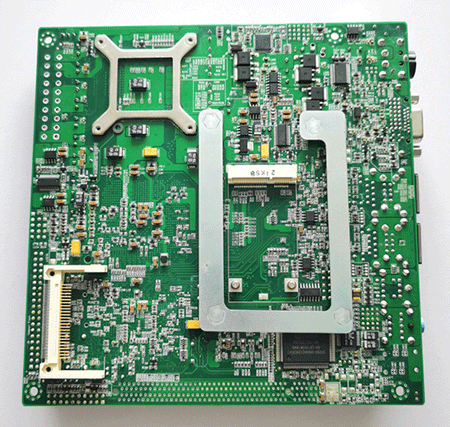

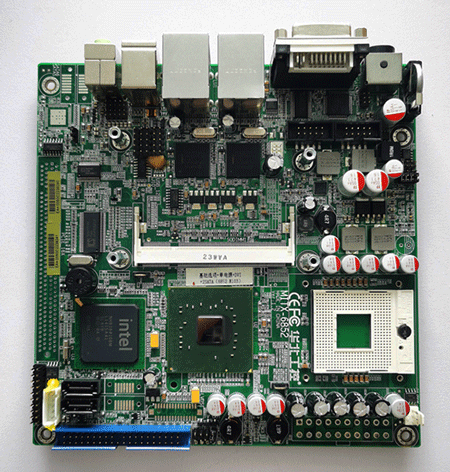

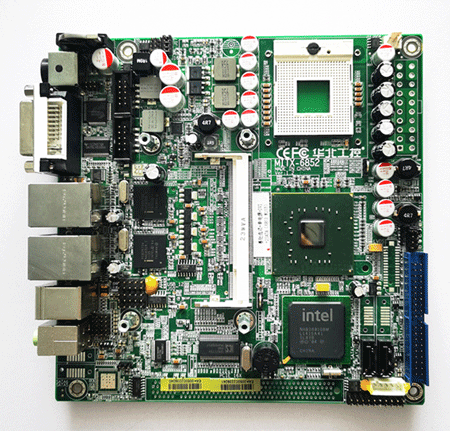

MITX-6852 VER:1.2 Mini-ITX Embedded Board with Intel Core2 Duo/ Duo/ Celeron M

产品分类：Mini-ITX主板
1、IntelCore2TM Duo/ Core TM Duo/CeleronEM with FSB 533/667MHz
2、1x 200-Pin DDRII 400/533/667MHz SO-DIMM up to 2GB
3、18-bit Dual channel LVDS(DVIyCRT/TV-OUT Display Output
4、CRT+DVI,CRT+LVDS,CRT+TV-OUT support dual independent dis-play
5、2x 10/100/1000Mbps Ethernet
6、6x SATAll channels with software RAID0,1,5 and 10
7、1x IDE, 1x Typell CompactFlash, 6x USB2.0, 1x MiniPCI, 1x PCI-Ex16, 2x COM
