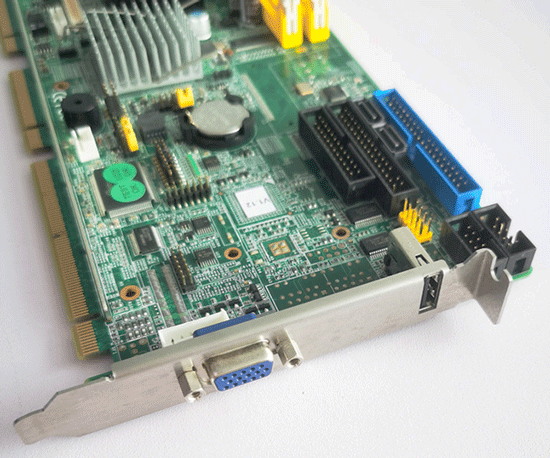

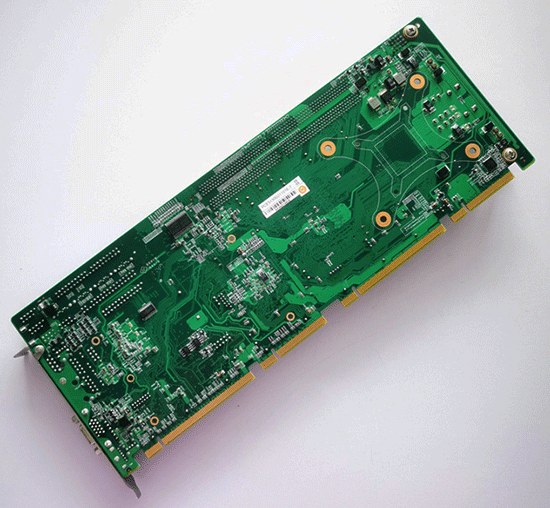

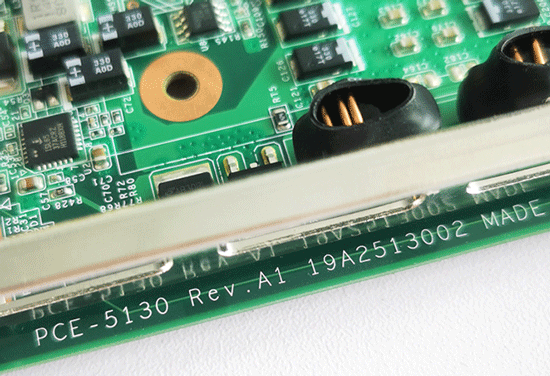

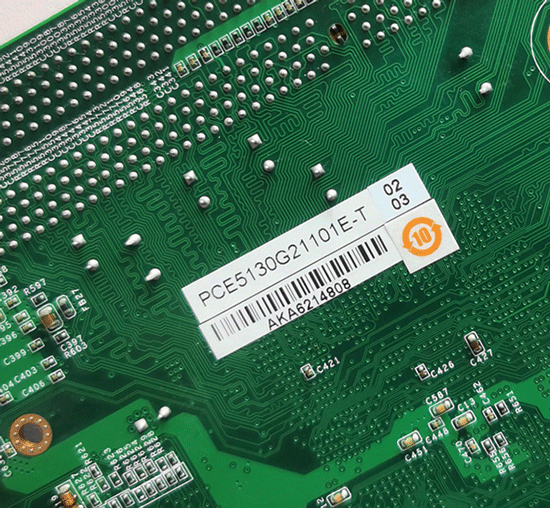

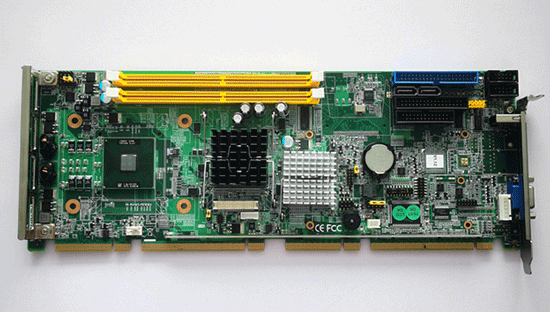

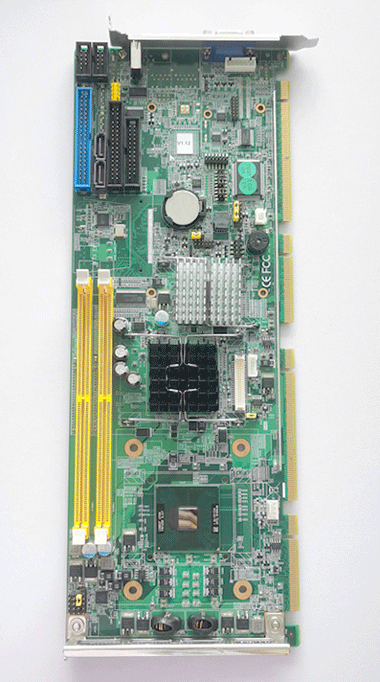

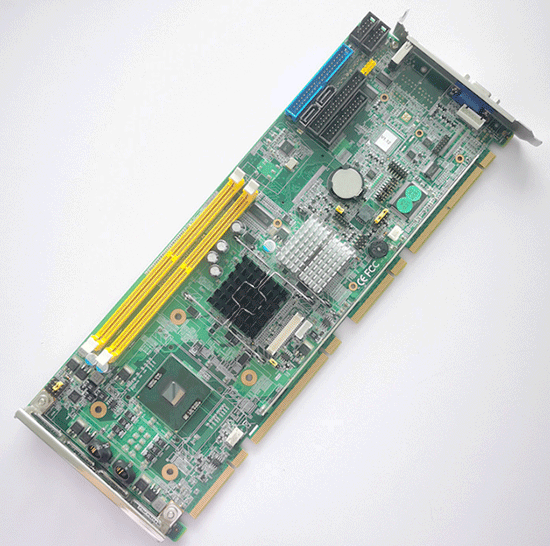

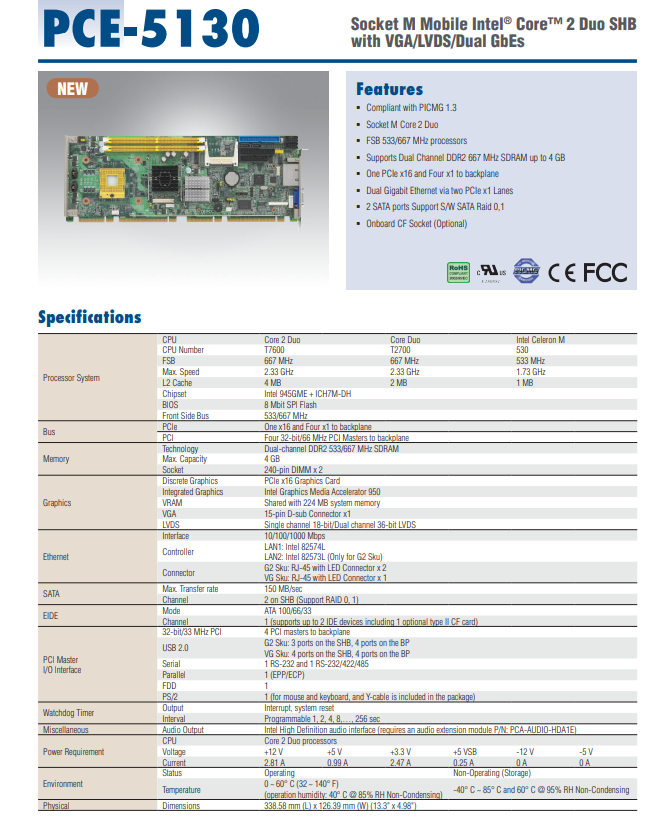

PCE-5130 REV A1 19A2513002 PCE5130G21101E-T Socket M Mobile Intel® Core™ 2 Duo SHBwith VGA/LVDS/Dual GbEs

产品分类：PICMG 1.3 System Host Boards (SHB Express)
1、Compliant with PICMG 1.3
2、Socket M Core 2 Duo
3、FSB 533/667 MHz processors
4、Supports Dual Channel DDR2 667 MHz SDRAM up to 4 GB
5、One PCIe x16 and Four x1 to backplane
6、Dual Gigabit Ethernet via two PCIe x1 Lanes
7、2 SATA ports Support S/W SATA Raid 0,1
8、Onboard CF Socket (Optional)
