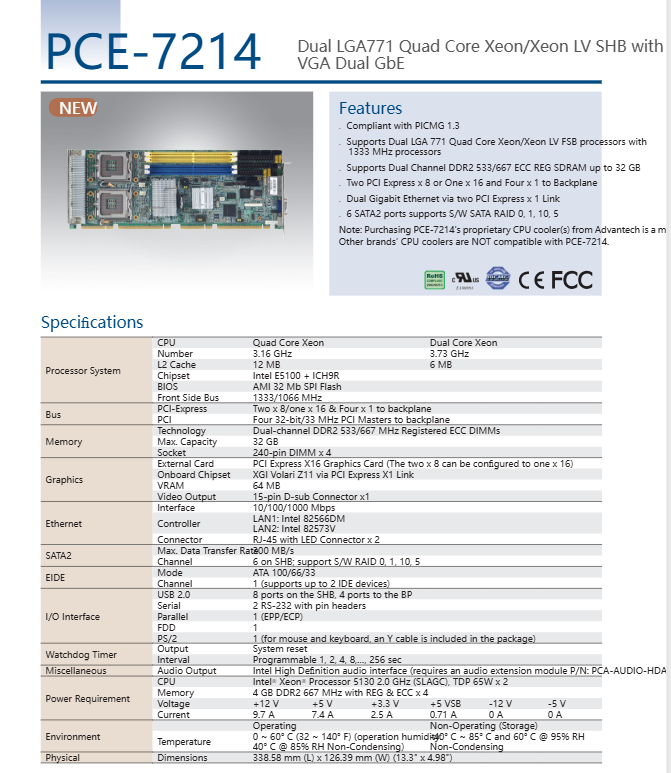

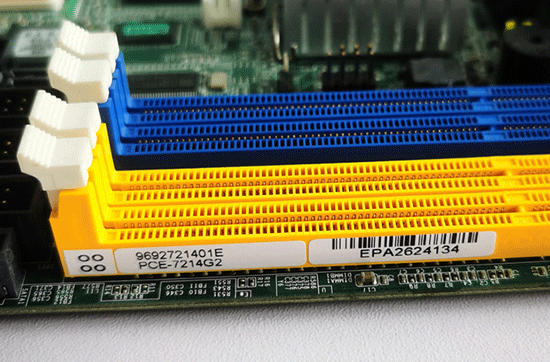

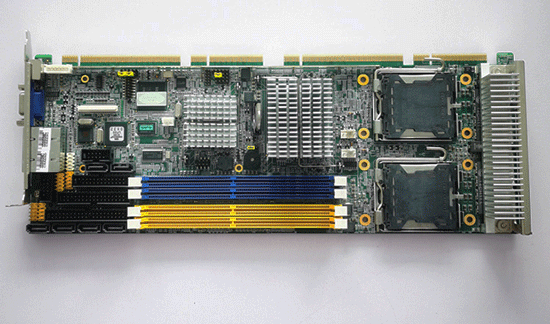

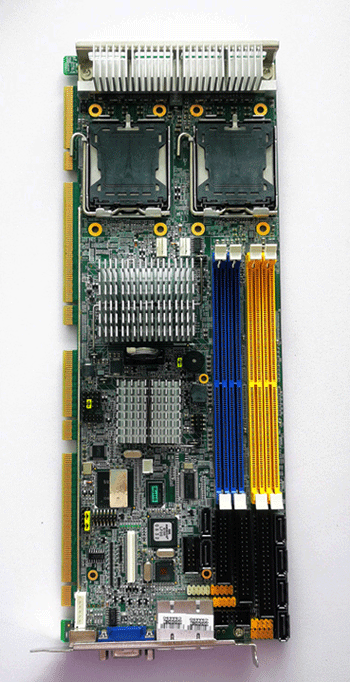

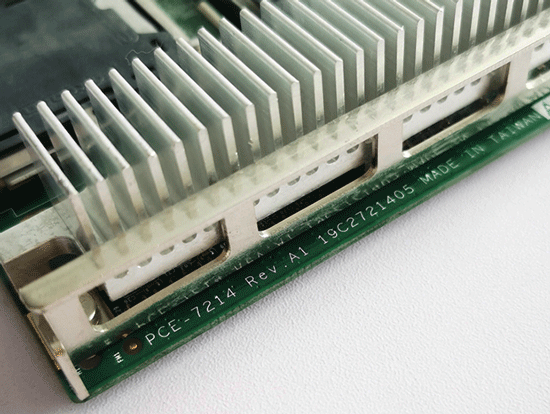

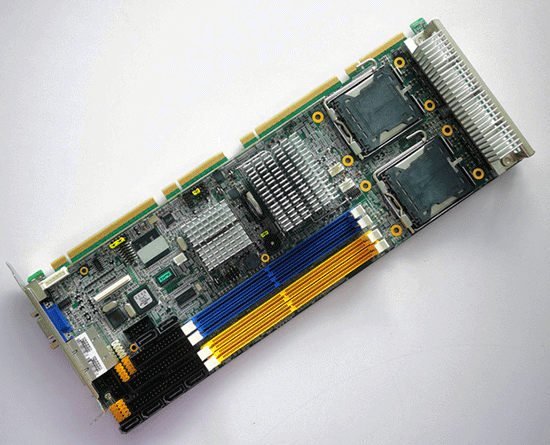

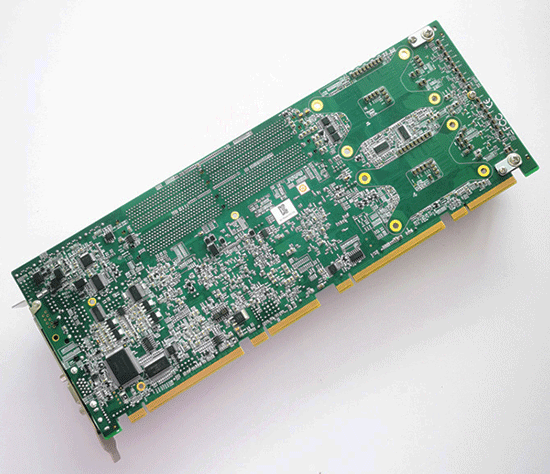

PCE-7214G2 REV A1 9692721401E 19C2721405 Dual LGA771 Quad Core Xeon/Xeon LV SHB with VGA Dual GbE

产品分类：PICMG 1.3 System Host Boards (SHB Express)
1、Compliant with PICMG 1.3 .
2、Supports Dual LGA 771 Quad Core Xeon/Xeon LV FSB processors with 1333 MHz processors
3、Supports Dual Channel DDR2 533/667 ECC REG SDRAM up to 32 GB
4、TWo PCI Express x 8 or One x 16 and Four x 1 to Backplane
5、Dual Gigabit Ethernet via two PCI Express x 1 Link
6、6 SATA2 ports supports S/W SATA RAID 0, 1, 10, 5
7、 Note: Purchasing PCE-7214's proprietary CPU cooler(s) from Advantech is a must. Other brands' CPU coolers are NOT compatible with PCE-7214.
