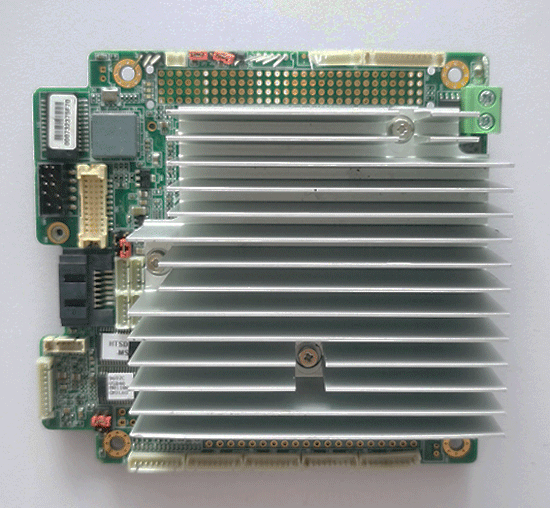

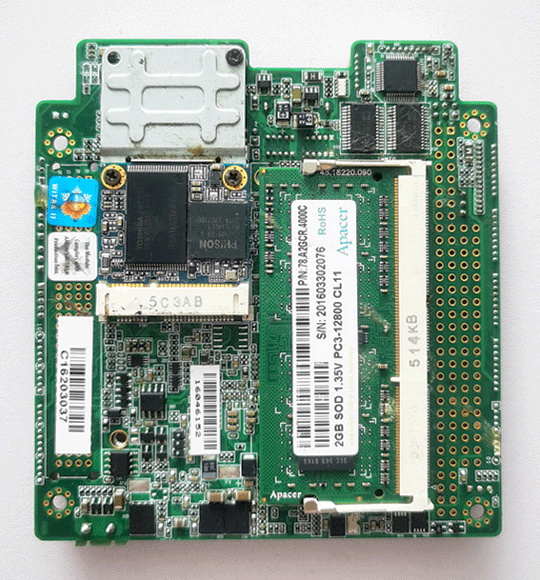

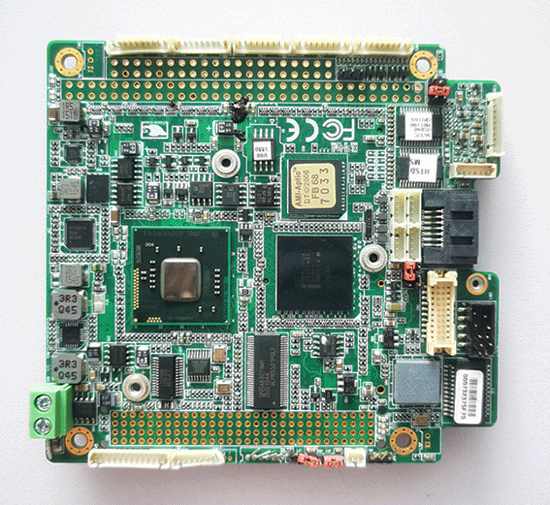

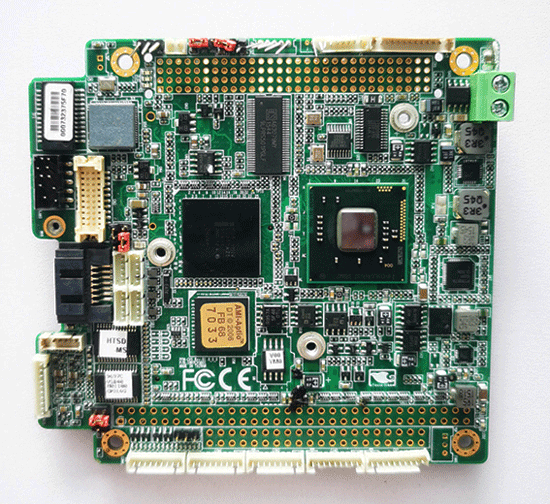

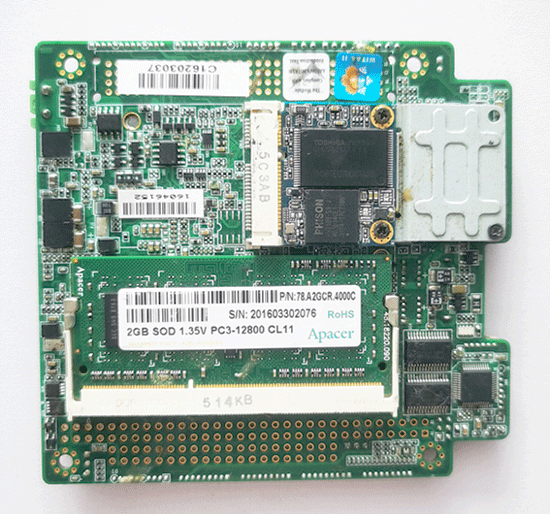

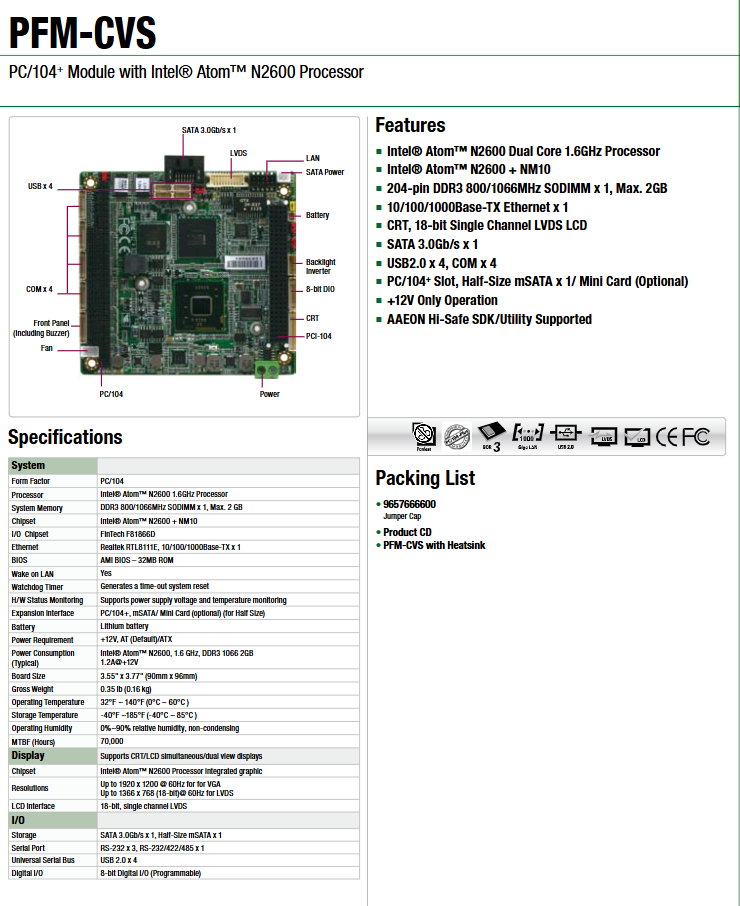

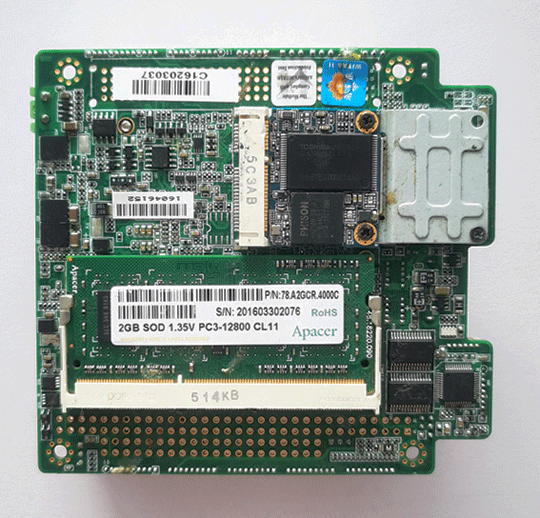

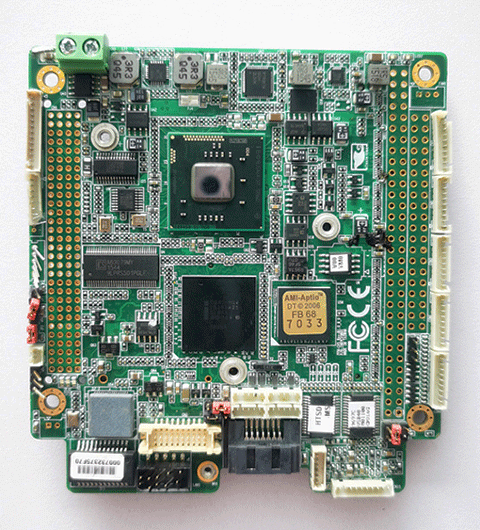

PFM-CVS PC/104+ Module with Intel® Atom™ N2600 Processor

产品分类：PC/104 扩展卡
1、Intel® Atom™ N2600 + NM10
2、204-pin DDR3 800/1066MHz SODIMM x 1, Max. 2GB
3、10/100/1000Base-TX Ethernet x 1
4、CRT, 18-bit Single Channel LVDS LCD
5、SATA 3.0Gb/s x 1
6、USB2.0 x 4, COM x 4
7、PC/104
8、+ Slot, Half-Size mSATA x 1/ Mini Card (Optional) +12V Only Operation
9、AAEON Hi-Safe SDK/Utility Supported
10、SATA 3.0Gb/s x 1LVDSLANBacklight Inverter8-bit DIO CRTP C I -10 4PowerPC/104FanFront Panel (Including Buzzer)COM x 4USB x 4BatterySATA Power
