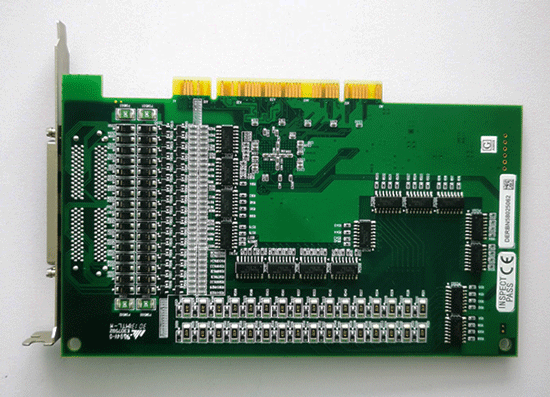

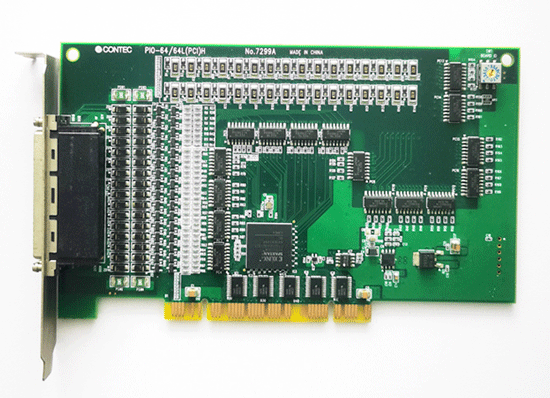

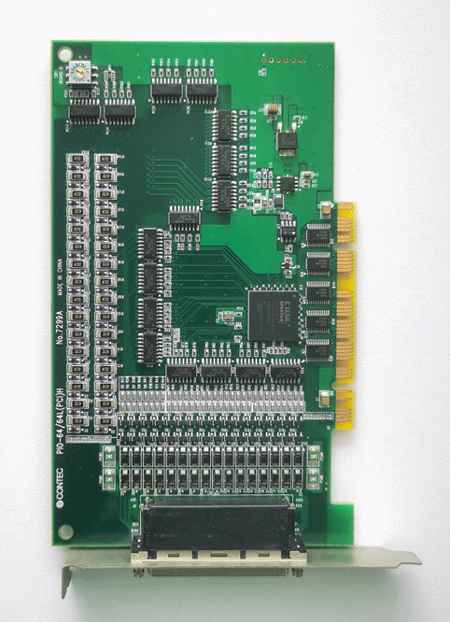

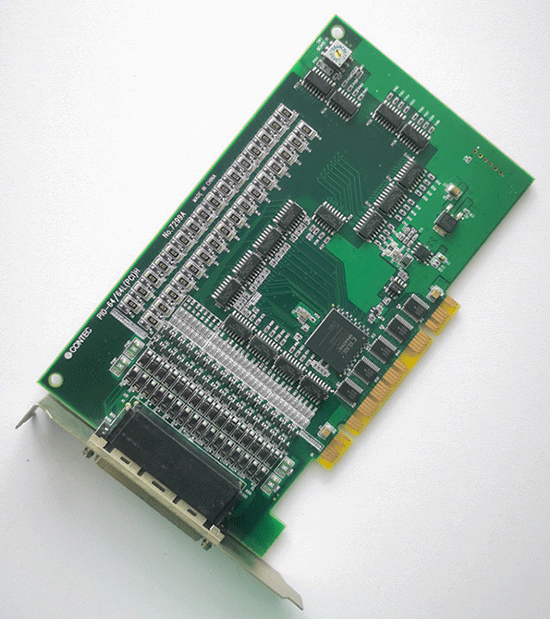

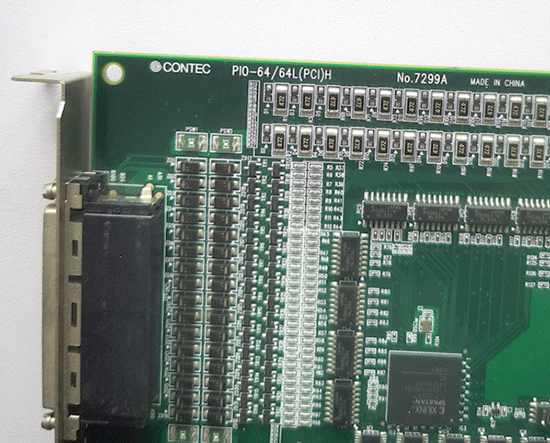

PIO-64/64L(PCI) H NO:7299A Digital I/O Board with Opto-Isolation for PCI

产品分类：PCI总线半长CPU卡

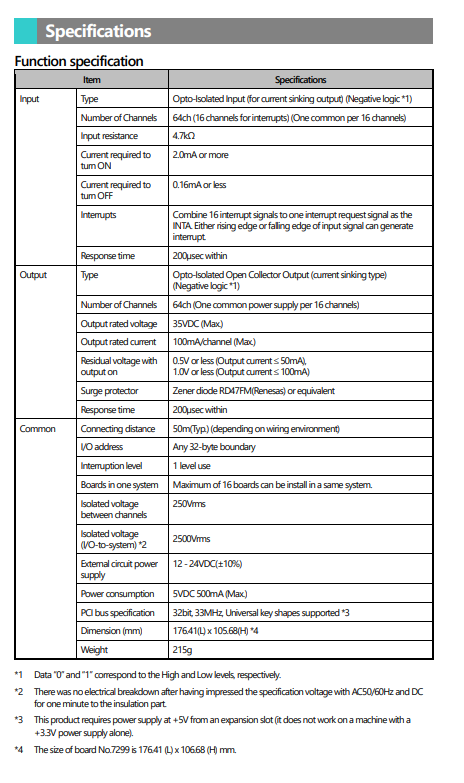

1、Data “0” and “1” correspond to the High and Low levels, respectively.
2、 There was no electrical breakdown after having impressed the specification voltage with AC50/60Hz and DCfor one minute to the insulation part.
3、 This product requires power supply at +5V from an expansion slot (it does not work on a machine with a+3.3V power supply alone).
4、 The size of board No.7299 is 176.41 (L) x 106.68 (H) mm.
