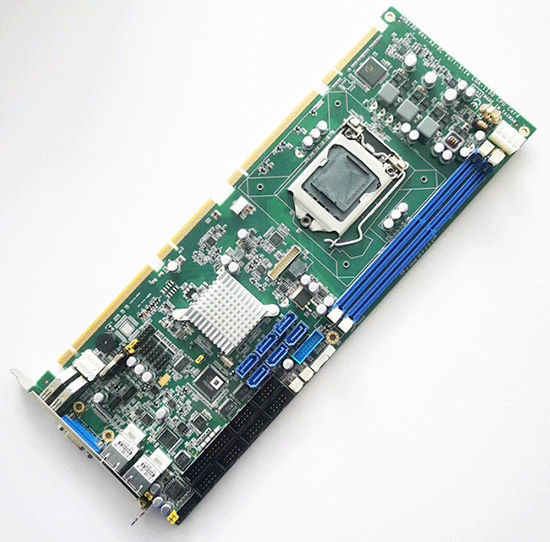

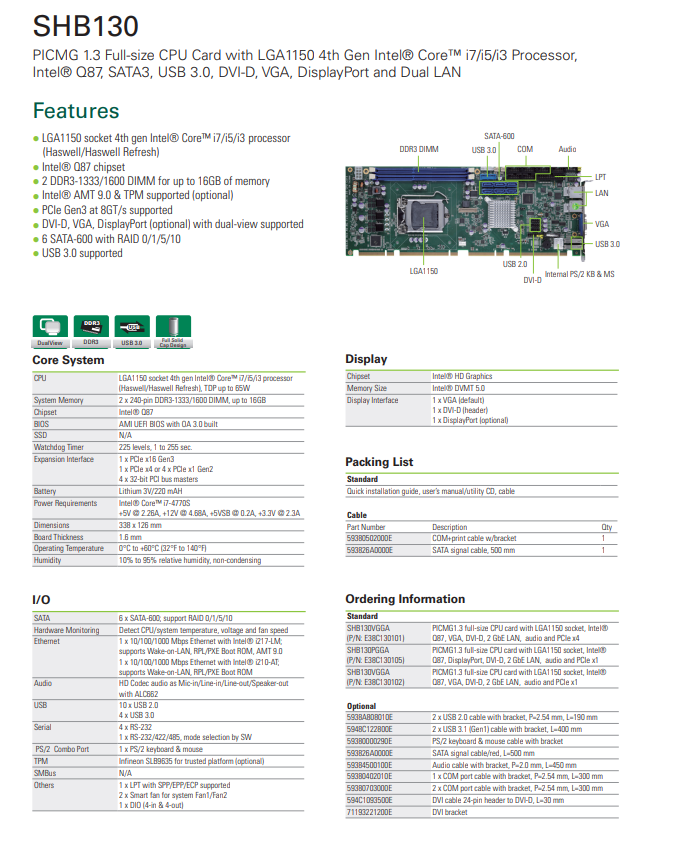

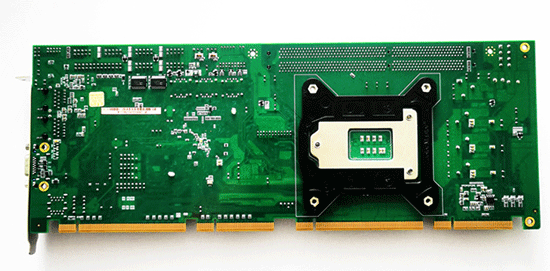

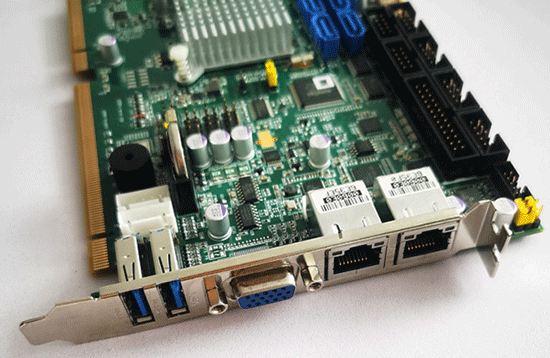

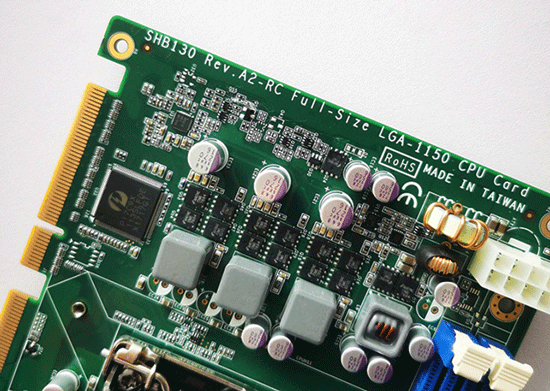

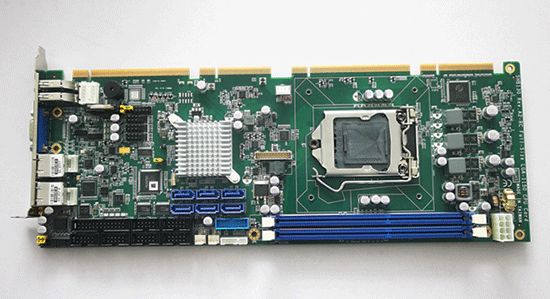

SHB130 REV A2-RC LGA-1150 CPU CARD PICMG 1.3 Full-size CPU Card with LGA1150 4th Gen Intel® Core™ i7/i5/i3 Processor,Intel® Q87, SATA3, USB 3.0, DVI-D, VGA, DisplayPort and Dual LAN

产品分类：全长CPU卡
1、LGA1150 socket 4th gen Intel® Core™ i7/i5/i3 processor(Haswell/Haswell Refresh)
2、 Intel® Q87 chipset
3、 2 DDR3-1333/1600 DIMM for up to 16GB of memory
4、ntel® AMT 9.0 & TPM supported (optional)
5、 PCIe Gen3 at 8GT/s supported
6、 DVI-D, VGA, DisplayPort (optional) with dual-view supported
7、 6 SATA-600 with RAID 0/1/5/10
8、 USB 3.0 supported
