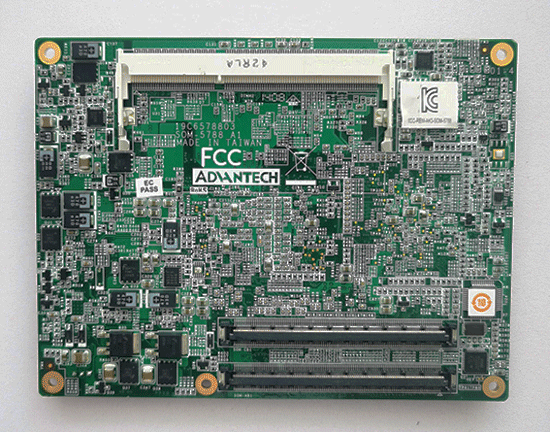

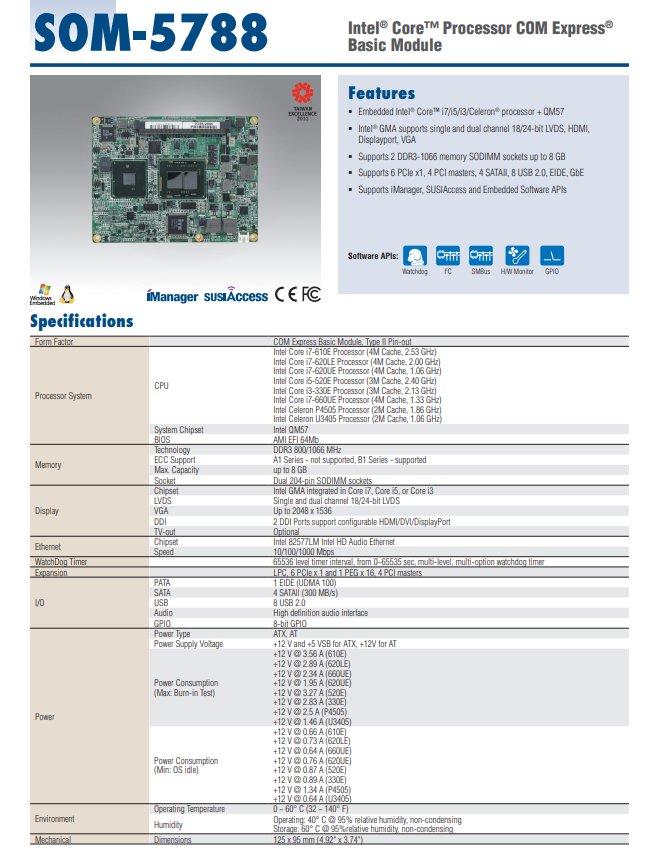

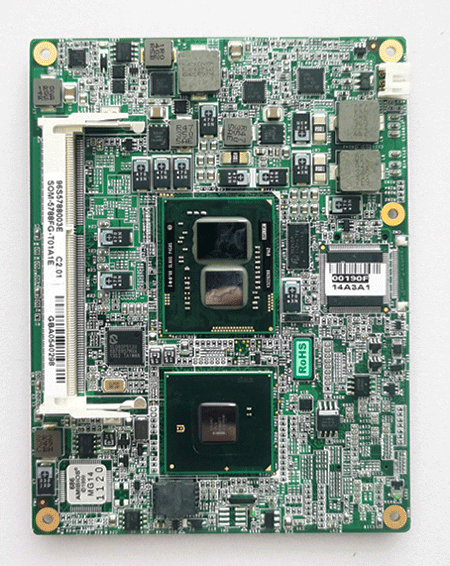

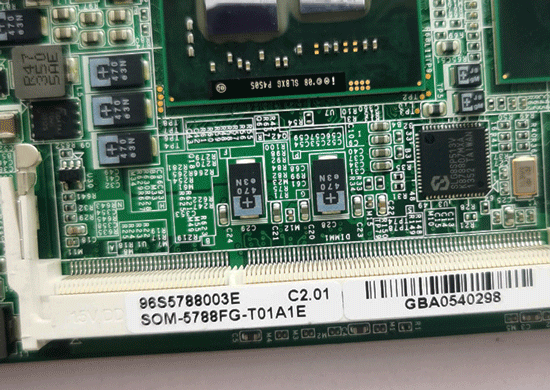

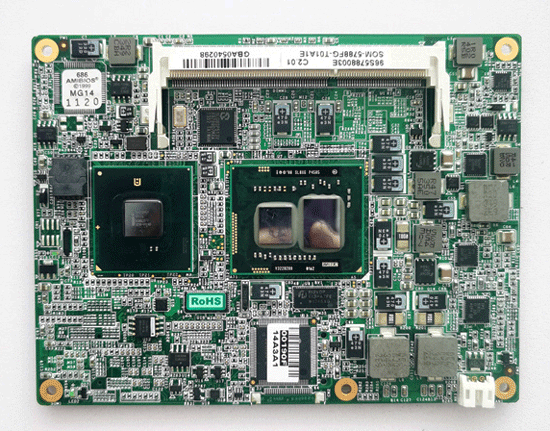

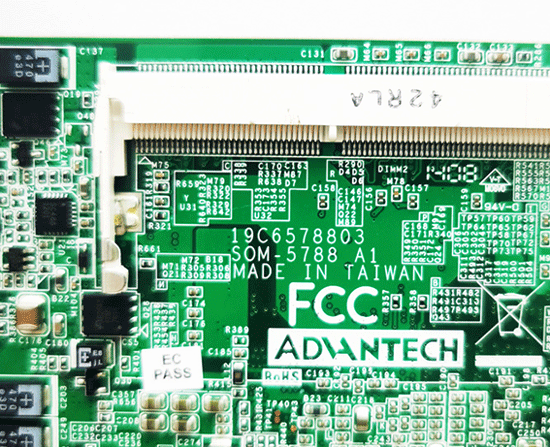

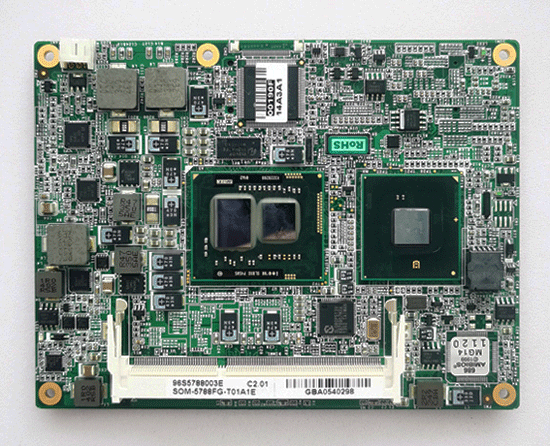

SOM-5788 REV A1 19C6578803 96S5788003E Intel® Core™ Processor COM Express® Basic Module

产品分类：COMe模块
1、Embedded Intel® Core™ i7/i5/i3/Celeron® processor + QM57
2、 Intel® GMA supports single and dual channel 18/24-bit LVDS, HDMI,Displayport, VGA
3、 Supports 2 DDR3-1066 memory SODIMM sockets up to 8 GB
4、Supports 6 PCIe x1, 4 PCI masters, 4 SATAII, 8 USB 2.0, EIDE, GbE
5、upports iManager, SUSIAccess and Embedded Software APIs
