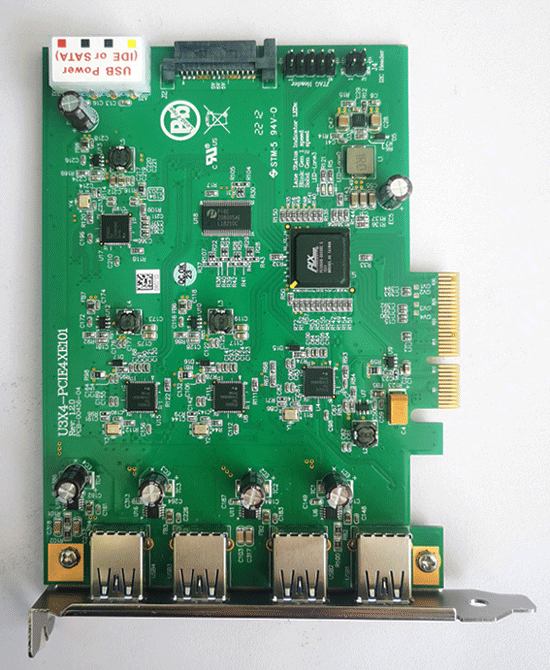

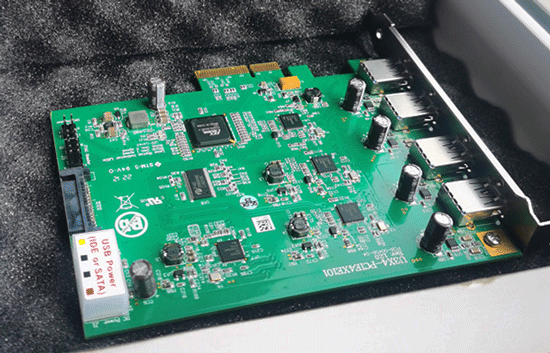

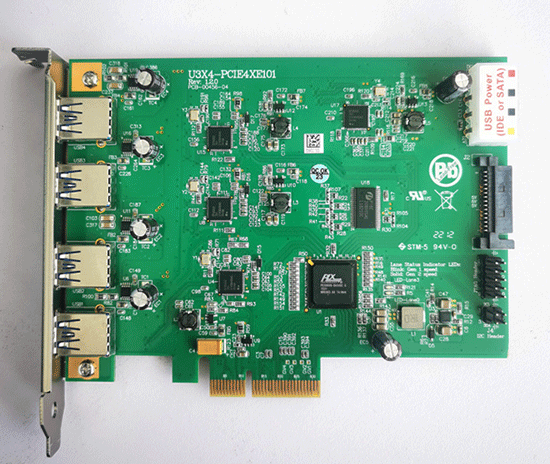

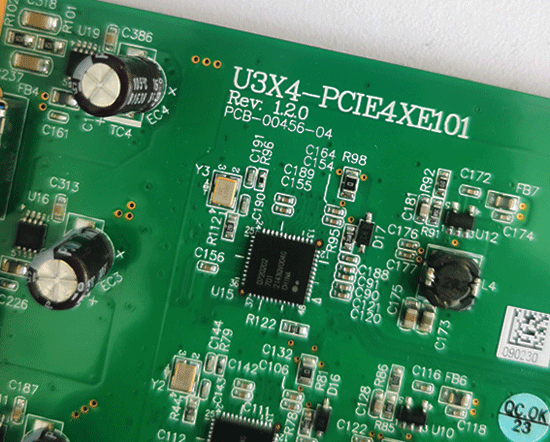

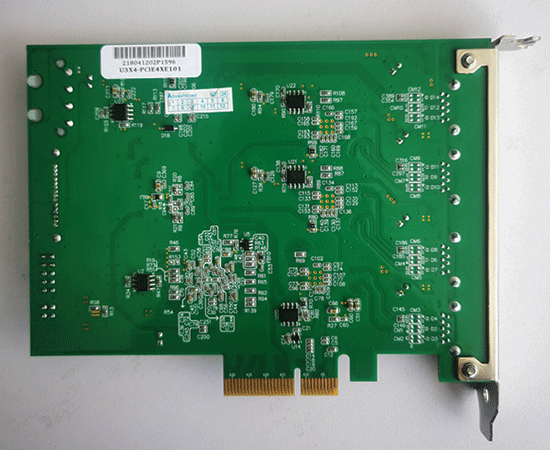

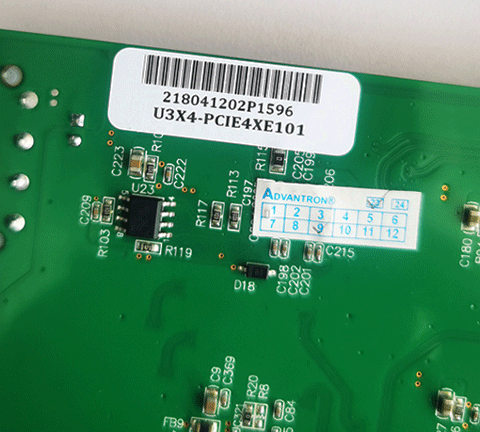

U3X4-PCIE4XE101 REV 1.2.0 PCB-00456-04 Quad Channel USB 3.0 to PCI Express x4 Gen 2 Host Card

产品分类：嵌入式单板电脑 & MIO 单板

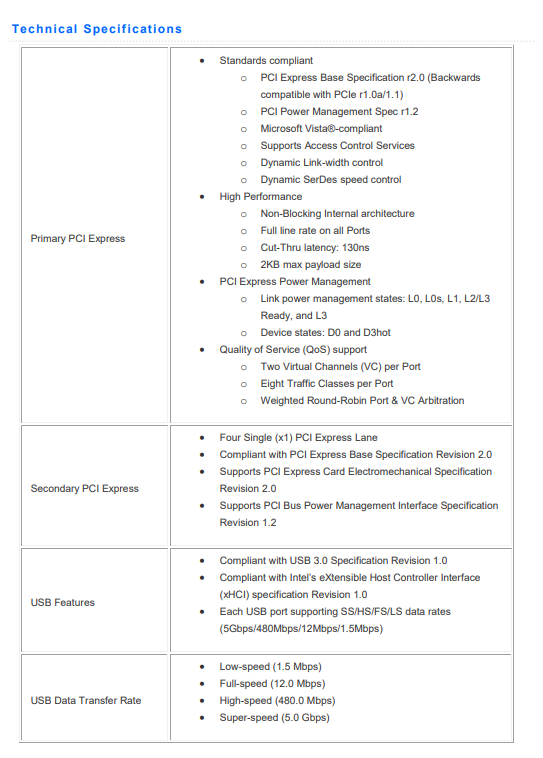

1、Compliant with PCI Express Base Specification Revision 2.0
2、 Supports PCI Express Card Electromechanical Specification Revision 2.0
3、 Host Bus: PCIe x4 Gen 2 (20.0 Gb/s)
4、 Compliant with Universal Serial Bus 3.0 specification Revision 1.0
5、 Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0

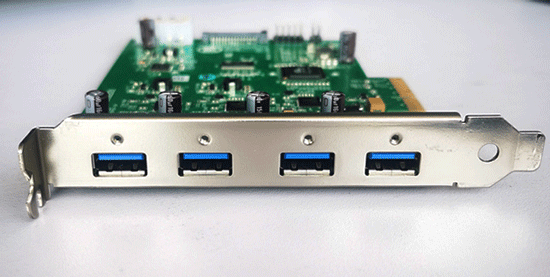

6、Four independent USB 3.0 Host Ports
