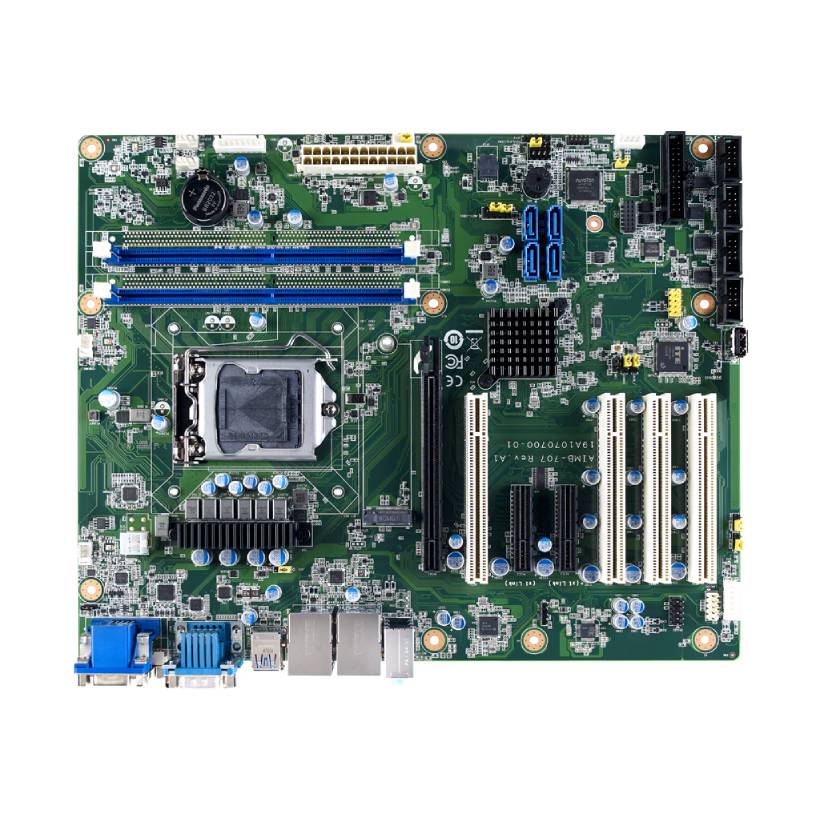

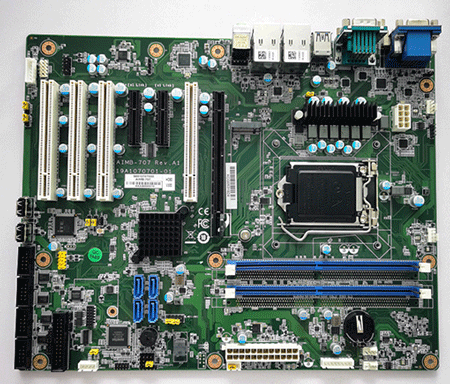

AIMB-707

产品分类：ATX主板
Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset
Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB

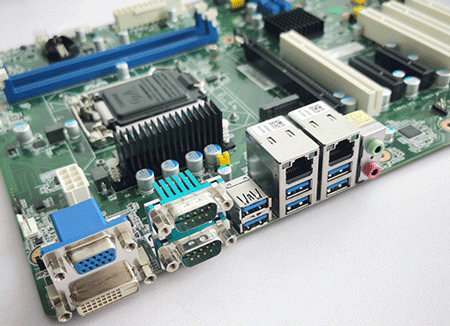

Support VGA and DVI display
M.2, SATA 3.0, USB 3.2, dual GbEs
5 RS-232 and 1 RS-232/422/485 serial ports
1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
Note 1: Legacy platform is not supported.
Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11.
