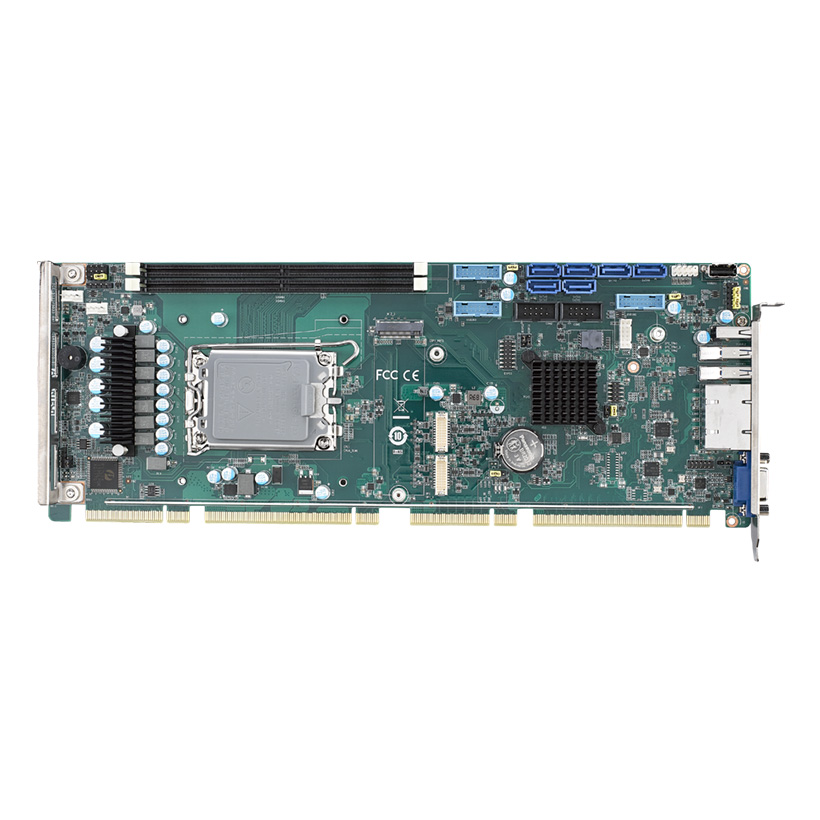

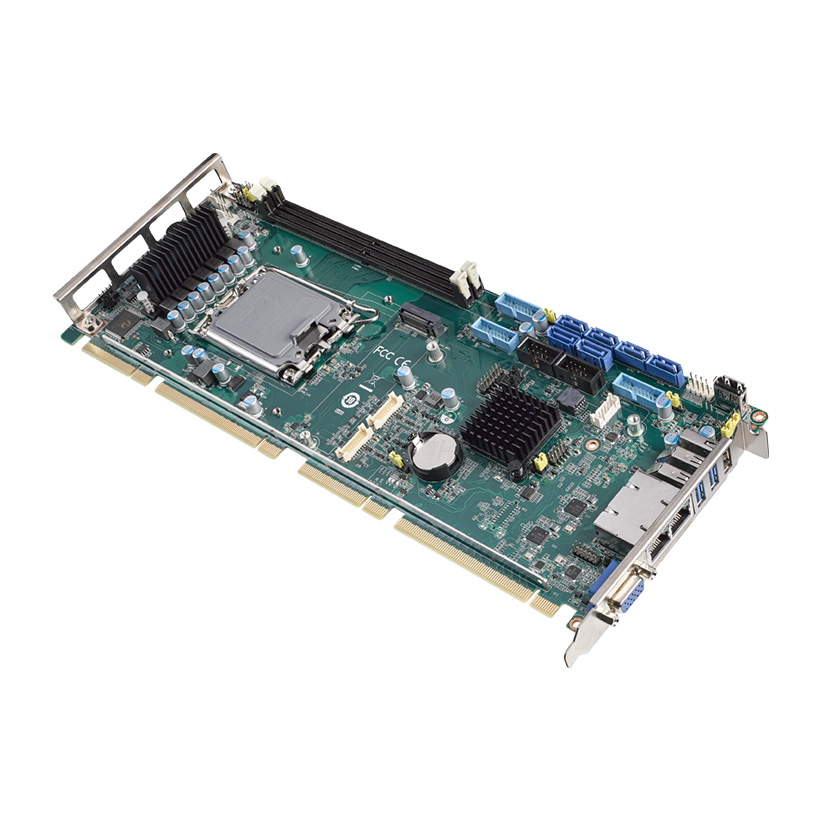

PCE-5133

产品分类：PICMG 1.3 System Host Boards (SHB Express)
Intel® Core™ i9/i7/i5/i3/Pentium LGA1700 processor with R680E chipset
Up to 64 GB of dual-channel (on-die ECC) DDR5 4800 MHz
PCIe 3.0, M.2, USB 3.2, SATA 3.0, Dual 2.5GbE LAN and SW Raid 0, 1, 5, 10
Supports VGA and 2 x DVI-D/DP/HDMI display (with optional cable)
Supports out-of-band remote management with AMT
Supports Advantech’s TPM and COM modules, SUSI 4.0, and embedded software APIs
