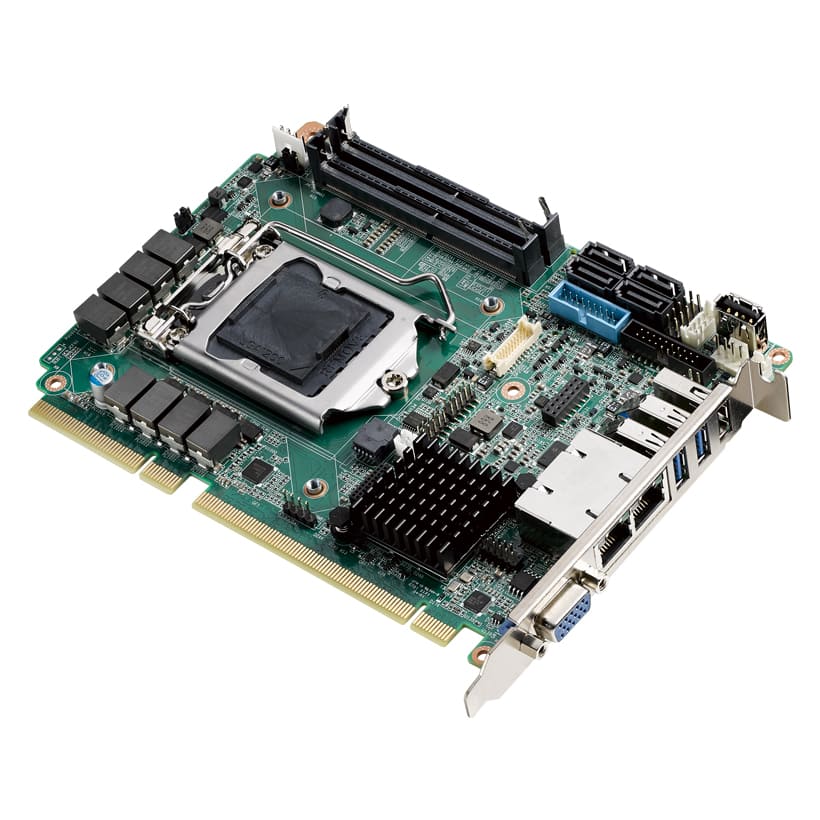

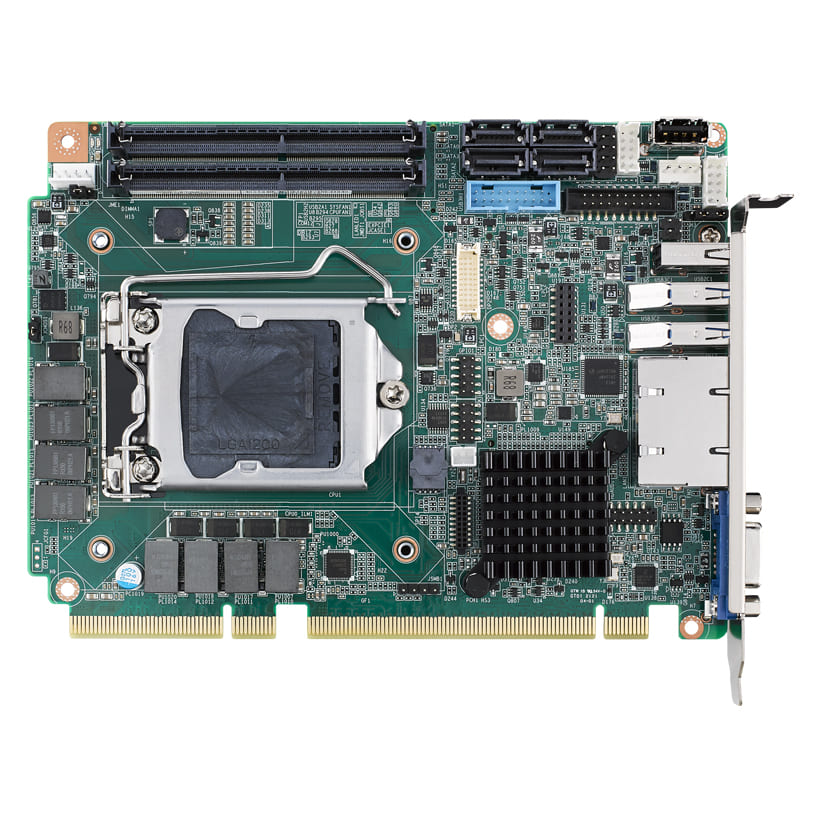

PCE-4132

产品分类：PICMG 1.3底板
Complies with PICMG 1.3
Supports Intel Xeon W Family series, Core i9/i7/i5/i3 LGA1200 processors with W480E
Dual Channel DDR4 2666/2933 (ECC/non-ECC) up to 64 GB
Supports PCIE 3.0, USB 3.2, SATA3.0, SW RAID 0, 1, 5, 10
Supports triple displays: VGA+DVI-D (optional) + DP (optional)
Supports out-of-band remote management with AMT9.0
Supports Advantech TPM module (optional)
Supports SUSIAccess and embedded software APIs
产品型录 (PDF) 技术资料下载
