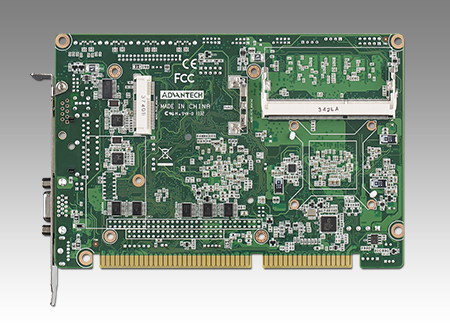

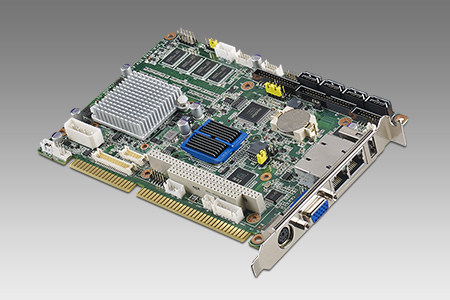

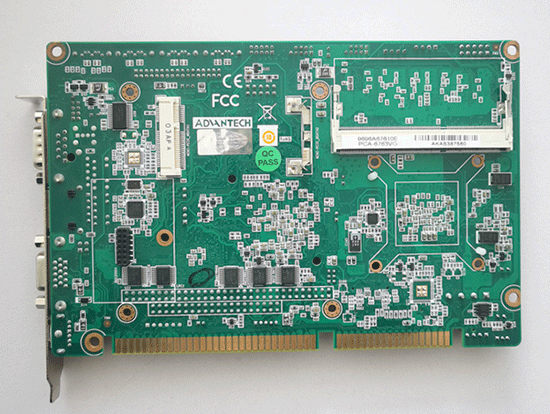

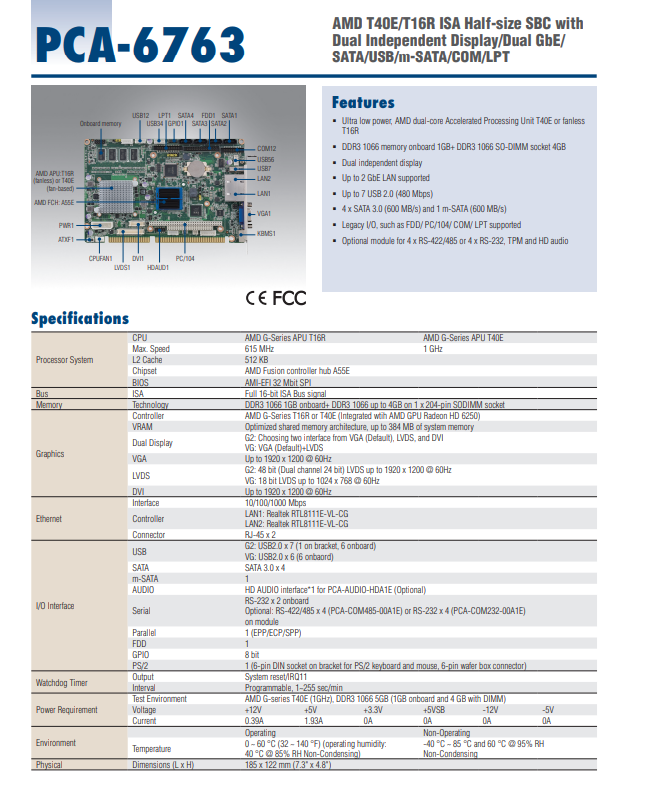

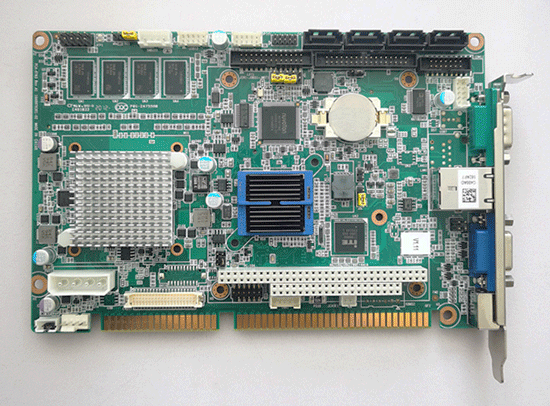

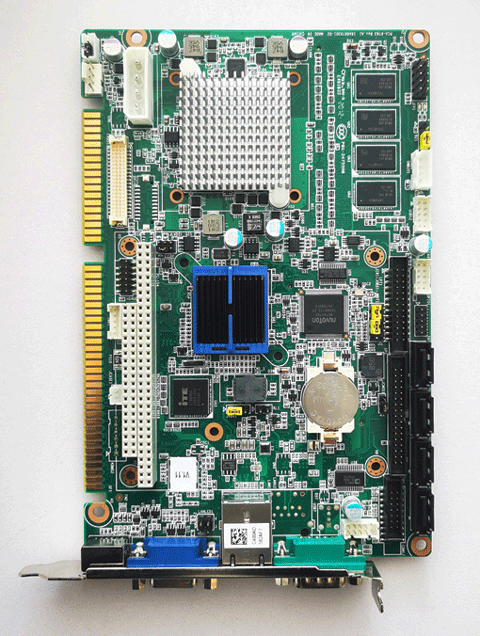

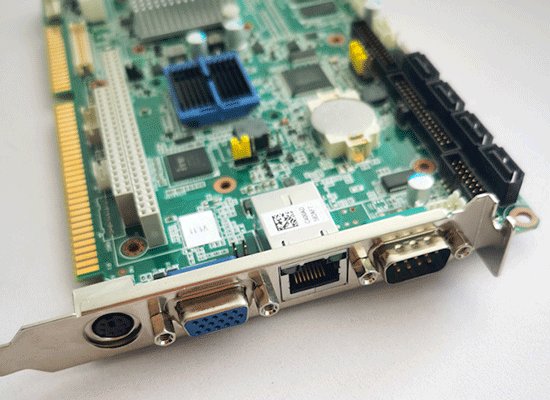

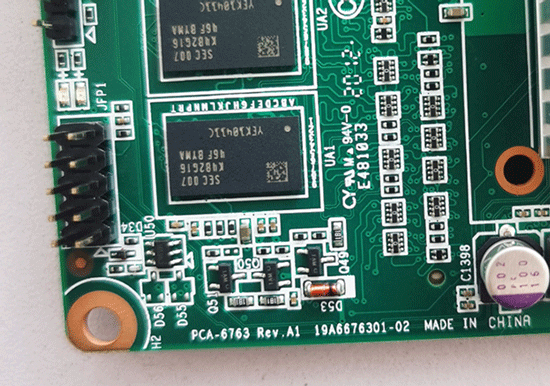

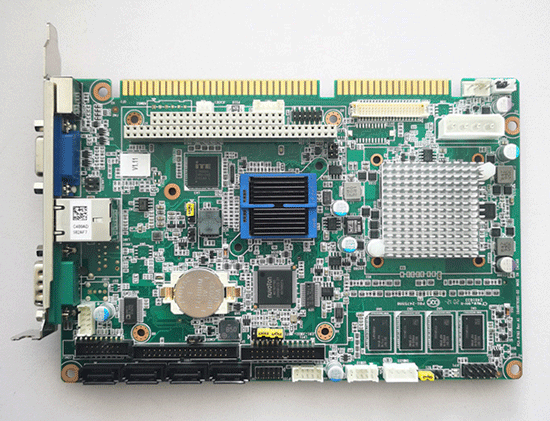

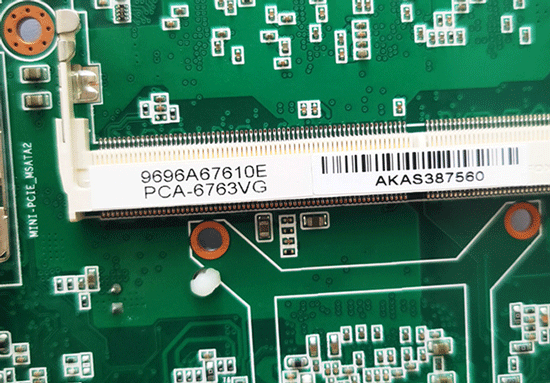

PCA-6763VG REV A1 9696A67610E 19A6676301-02 AMD T40E/T16R ISA Half-size SBC withDual Independent Display/Dual GbE/SATA/USB/m-SATA/COM/LPT

产品分类：PCI总线半长CPU卡
1、Ultra low power, AMD dual-core Accelerated Processing Unit T40E or fanlessT16R
2、 DDR3 1066 memory onboard 1GB+ DDR3 1066 SO-DIMM socket 4GB
3、 Dual independent display
4、Up to 2 GbE LAN supported
5、 Up to 7 USB 2.0 (480 Mbps)
6、 4 x SATA 3.0 (600 MB/s) and 1 m-SATA (600 MB/s)
7、 Legacy I/O, such as FDD/ PC/104/ COM/ LPT supported
8、 Optional module for 4 x RS-422/485 or 4 x RS-232, TPM and HD audio
