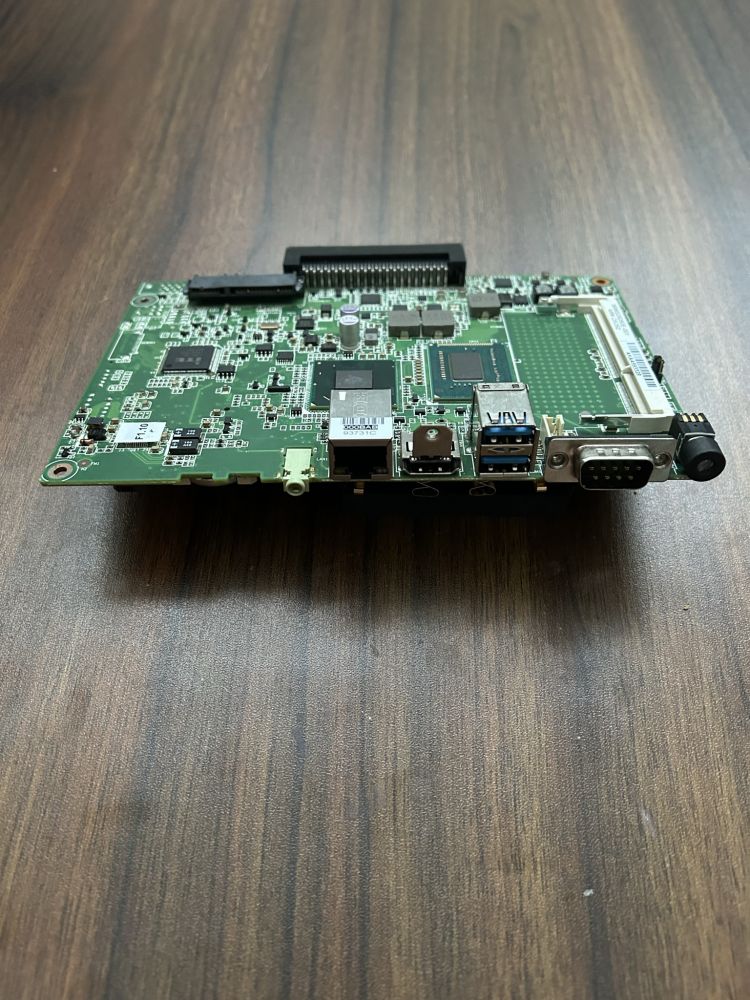

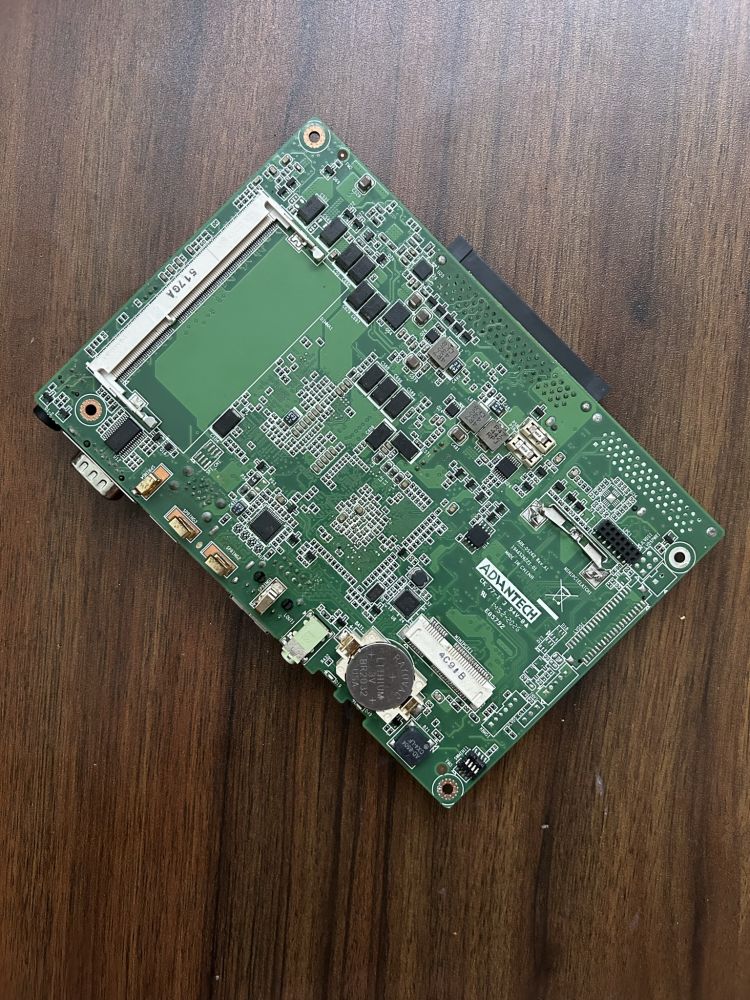

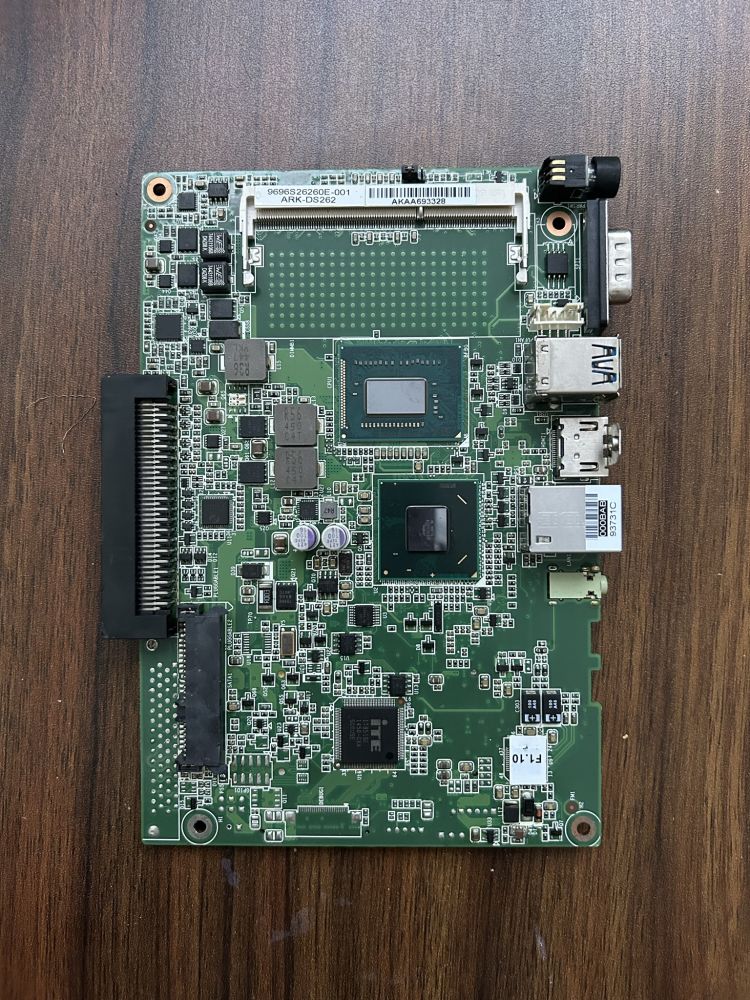

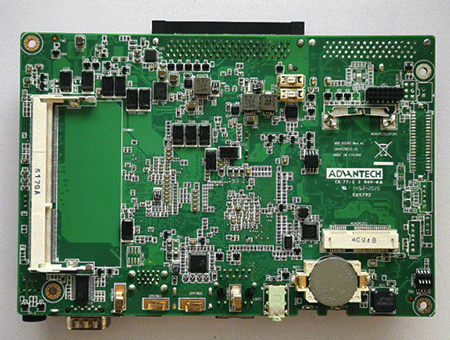

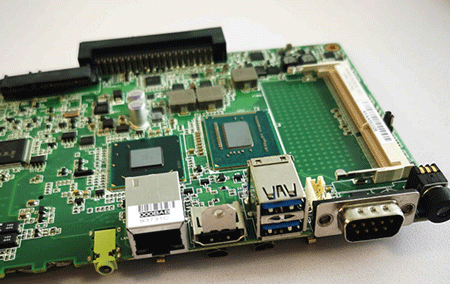

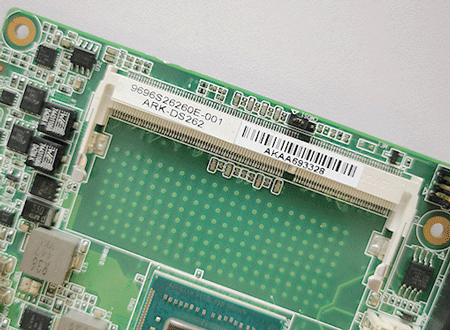

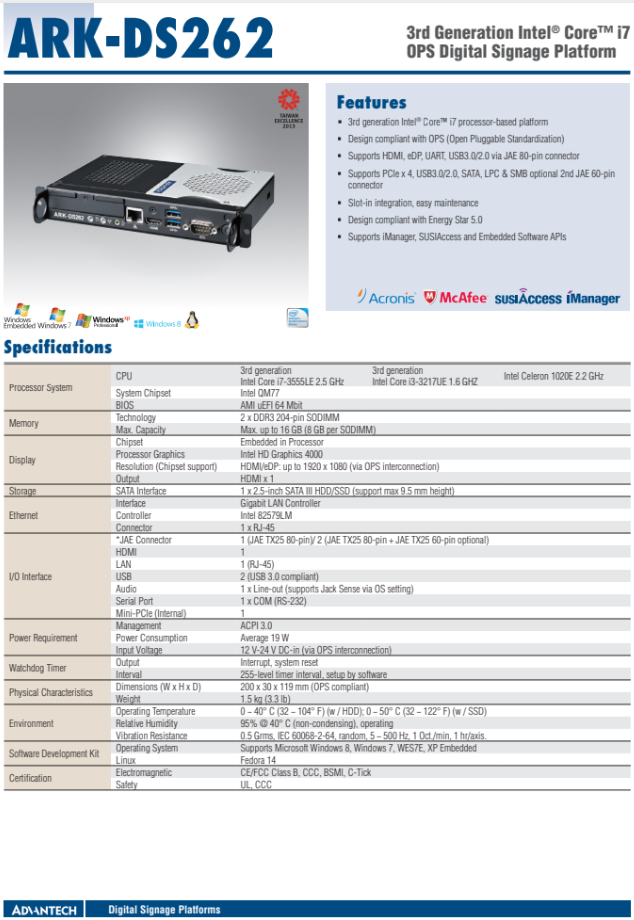

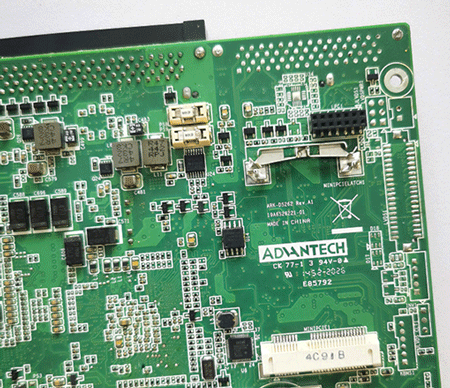

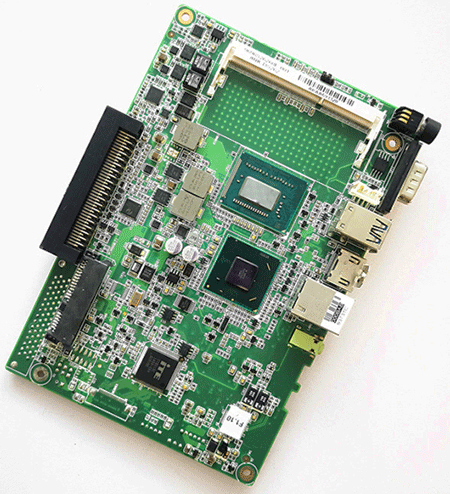

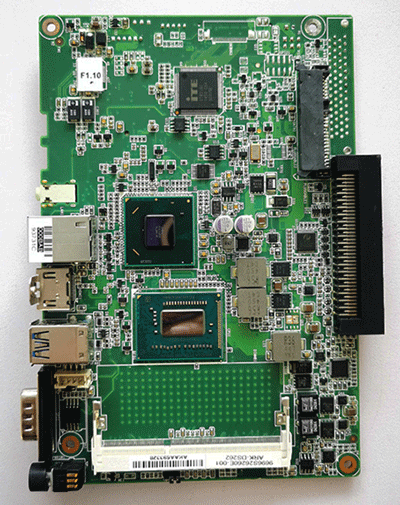

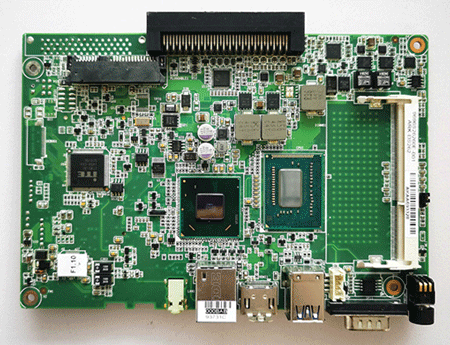

ARK-DS262 REV A1 9696S26260E-001 3rd Generation Intel® Core™ i7OPS Digital Signage Platform

产品分类：工业级母板
1、3rd generation Intel® Core™ i7 processor-based platform
2、Design compliant with OPS (Open Pluggable Standardization)
3、Supports HDMI, eDP, UART, USB3.0/2.0 via JAE 80-pin connector
4、Supports PCIe x 4, USB3.0/2.0, SATA, LPC & SMB optional 2nd JAE 60-pinconnector
5、Slot-in integration, easy maintenance
6、Design compliant with Energy Star 5.0
7、 Supports iManager, SUSIAccess and Embedded Software APIs
