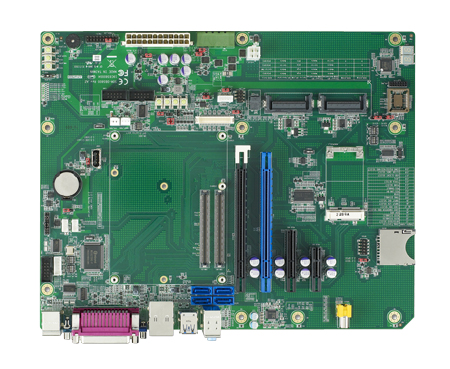

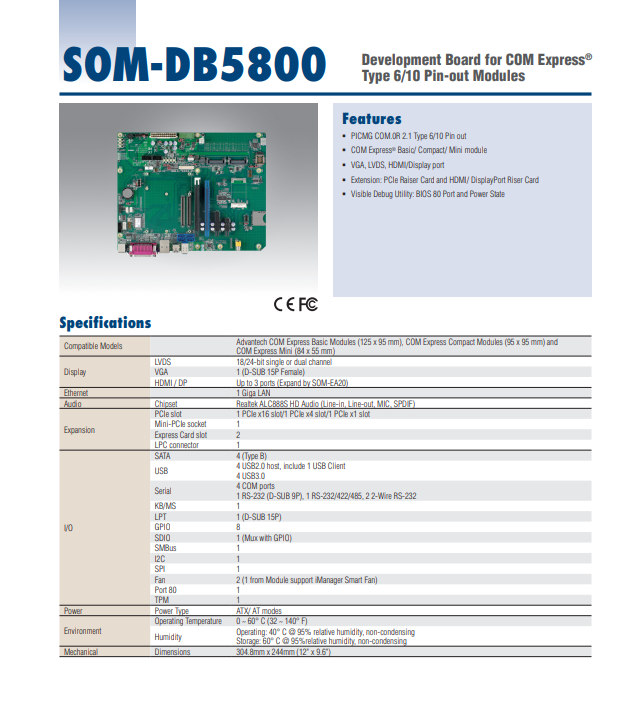

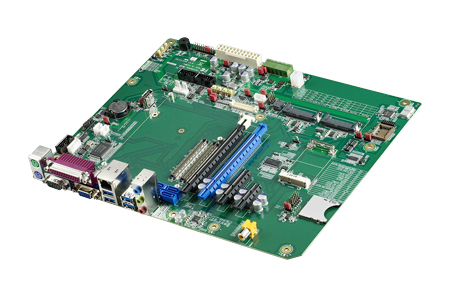

SOM-DB5800 / SOM-DB5800-U0A2E / SOM-DB5800-00A2E

产品分类：ATX主板
PICMG COM.0R 2.1 Type 6/10 Pin out
COM Express® Basic/ Compact/ Mini 模块
VGA, LVDS, HDMI/显示端口
扩展: PCIe Raiser Card 和 HDMI/ DisplayPort Riser Card
板载调试工具：BIOS 80 Port和电源状态指示灯
