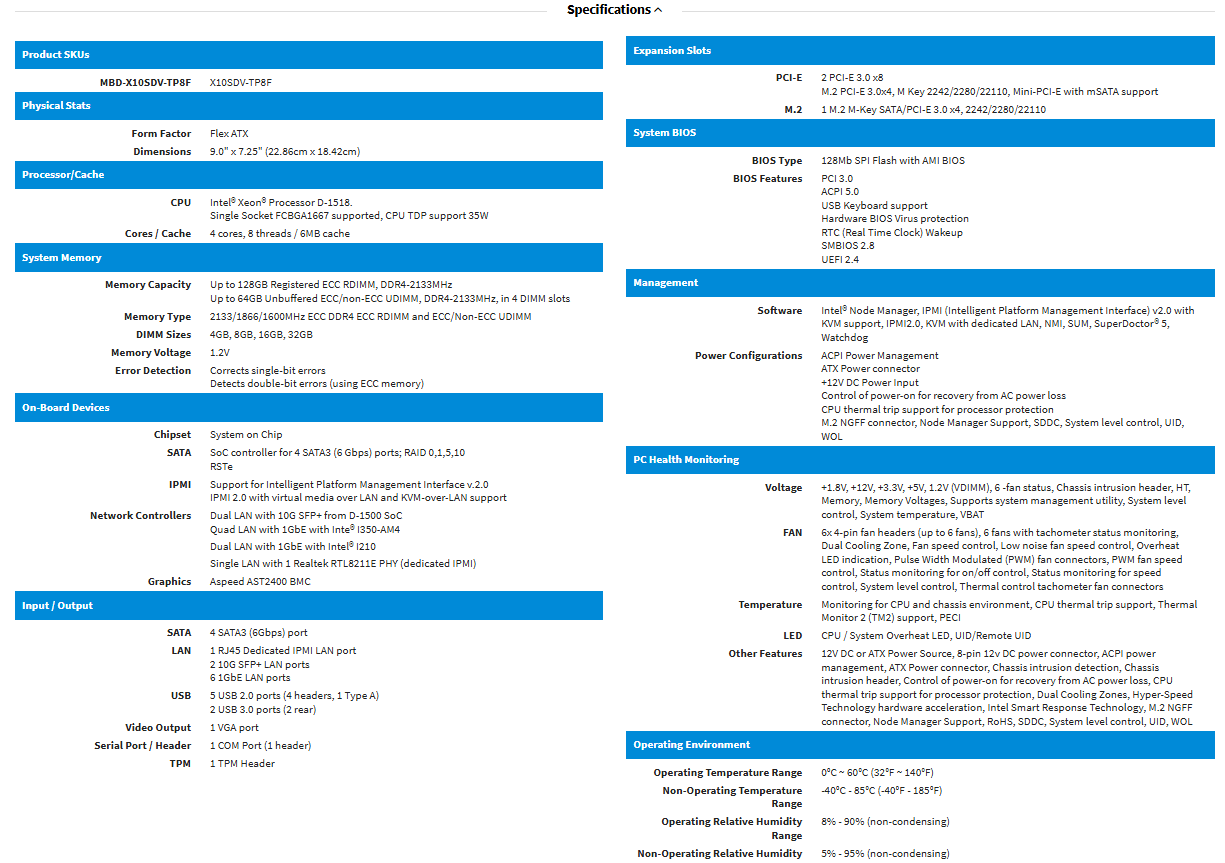

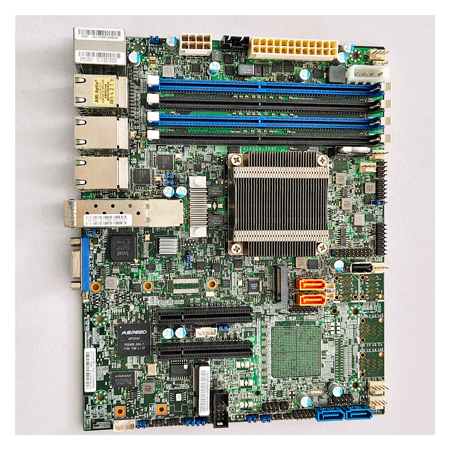

X10SDV-TP8F

产品分类：Mini-ITX主板
1、Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W

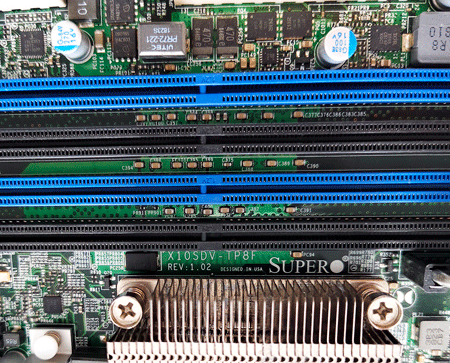

2、Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
3、2 PCI-E 3.0 x8,Mini PCI-E (mSATA support),
4、M.2 PCI-E 3.0 x4 (SATA support),M Key 2242/2280/22110

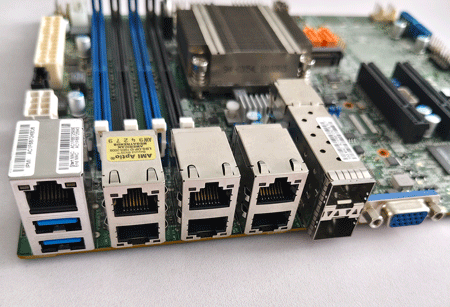

5、2 10G SFP+ and 6 GbE LAN
6、4 SATA3 (6Gbps) ports via SoC 2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
7、2 SuperDOM, 1 COM, TPM 2.0 header, GPIO and SMbus headers
8、12V DC Input and ATX Power Source
