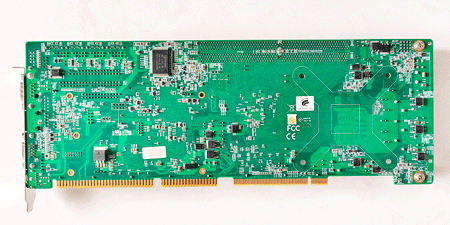

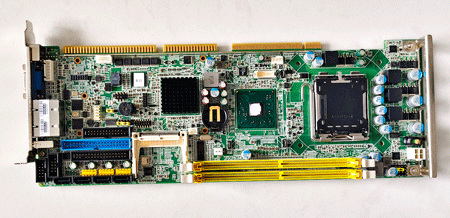

PCA-6010 PCA-6010G2-00A1E PCA-6010LV-00A1E PCA-6010VG-00A1E

产品分类：全长CPU卡
● 符合PICMG 1.0标准
● 支持LGA 775 Intel Core™ 2 Duo FSB 1066 MHz处理器
● 支持双通道DDR2 667 SDRAM，最高可达4 GB
● 单GbE LAN via PCIe x1通道
● 2 COM端口，4 SATA端口，8 USB接口
● G2版本支持CF插槽和DVI接口
● LGA775 Intel® Core™ 2 Duo单板电脑，带双千兆和DVI接口
