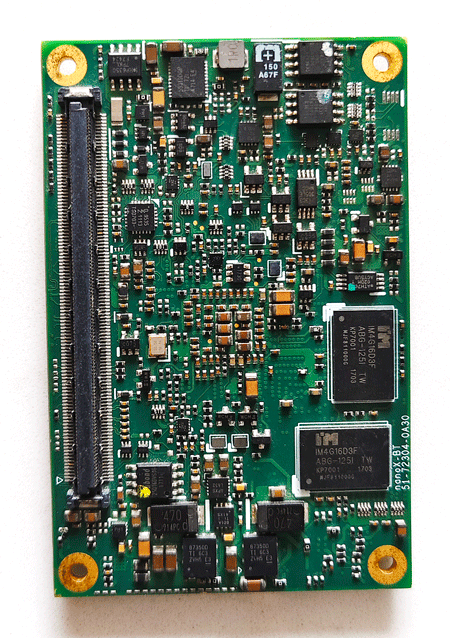

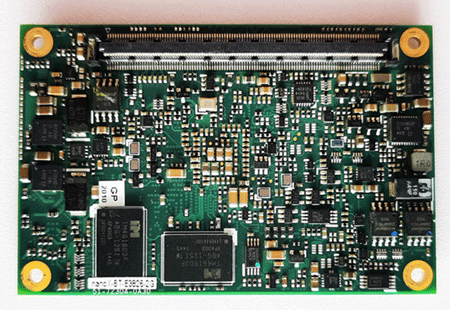

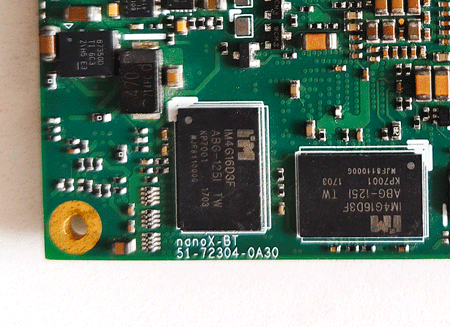

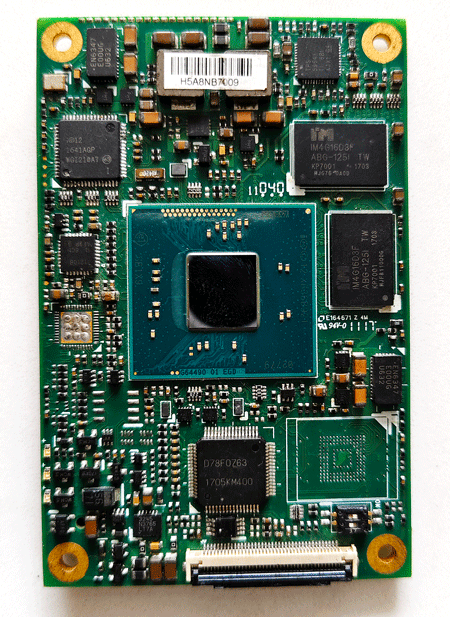

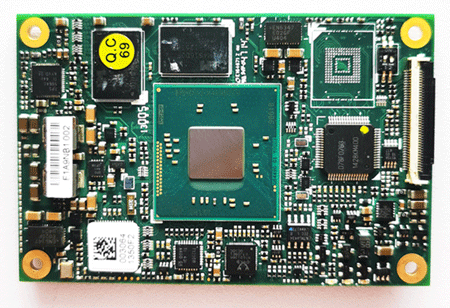

51-72304-OA30 nanoX-BT COM Express Mini Size Type 10 Module with Intel Atom® E3800 series SoC or Celeron Processors (formerly Bay Trail)

产品分类：CPU主板
1、Single, dual, quad-core Intel Atom or Celeron Processor System-on-Chip
2、Up to 4GB soldered Dual Channel DDR3L at 1333MHz
3、One DDI channel, one LVDS (optional eDP)
4、Three PCIe x1, GbE
5、GbE, two SATA 3Gb/s, four USB and one USB client
6、Supports Smart Embedded Management Agent (SEMA®) functions
7、Extreme Rugged operating temperature: -40°C to +85°C (build option)
