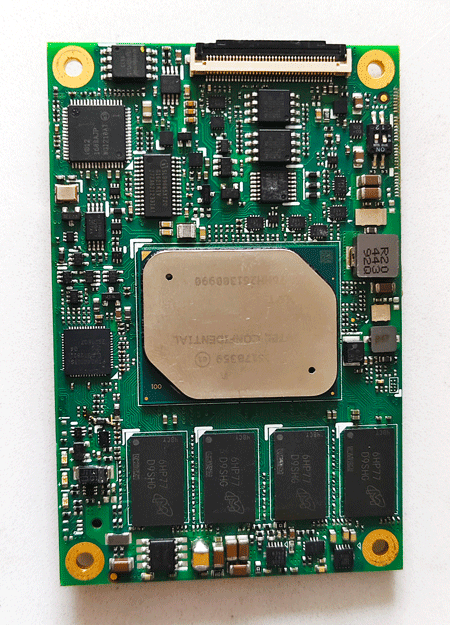

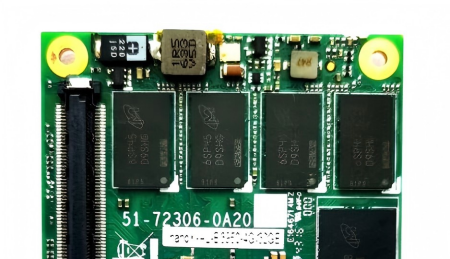

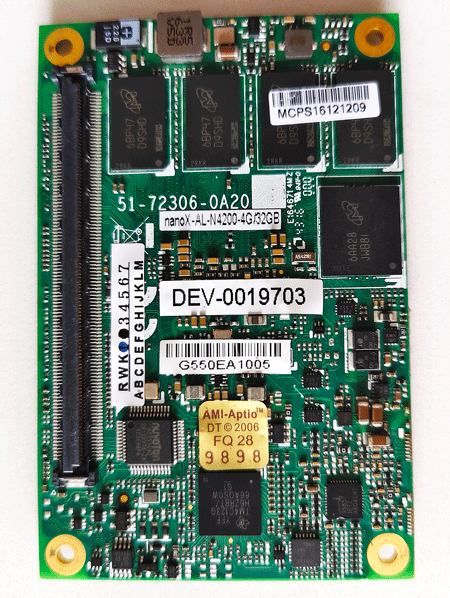

51-72306-OA20 51-72306-OA10 NANOX-AL-N4200-4G/32GB COM Express Mini Size Type 10 Module with Intel Atom® E3900 series SoCand Pentium®/Celeron® SoC

产品分类：CPU主板
1、 Intel Atom® E3900 series (formerly Apollo Lake) andPentium®/Celeron® SoC, supporting full virtualization (VT-d/VT-x)
2、 Up to 8GB Dual Channel soldered non-ECC DDR3L at 1867/1600MHz
3、Newest Intel® Gen9 Low Power graphics, up to 4k resolution andH.265 codec
4、 Multiple PCIe x1 Gen2 (configurable to x2, x4), GbE
5、 Two SATA 6 Gb/s, two USB 3.0 and six USB 2.0, eMMC 5.0(build option)
6、 Supports Smart Embedded Management Agent (SEMA) functions
7、 Extreme Rugged operating temperature: -40°C to +85°C(build option for E3900 series SKUs)
