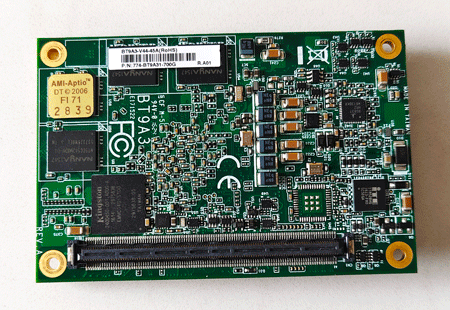

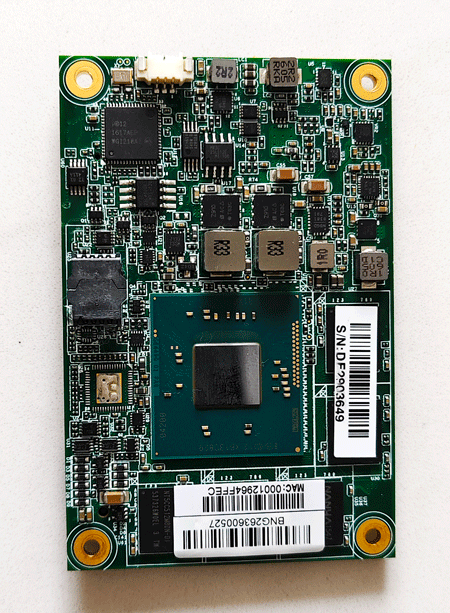

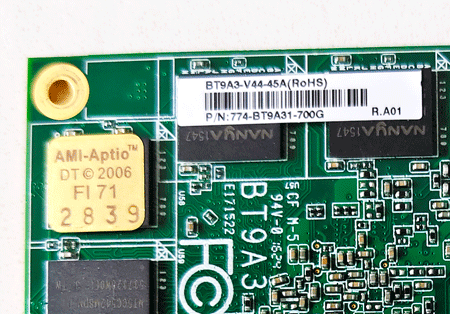

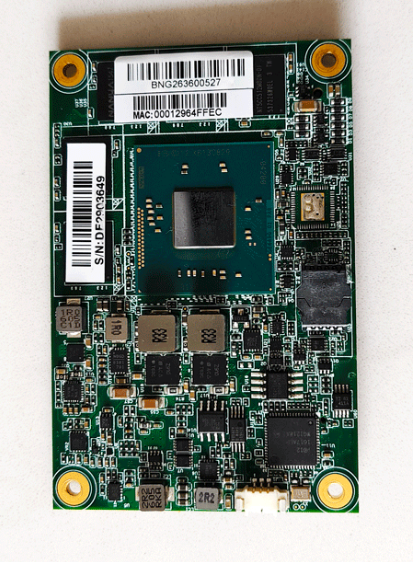

BT9A3-V44-45A (ROHS) PN:774-BT9A31-700G

产品分类：CPU主板

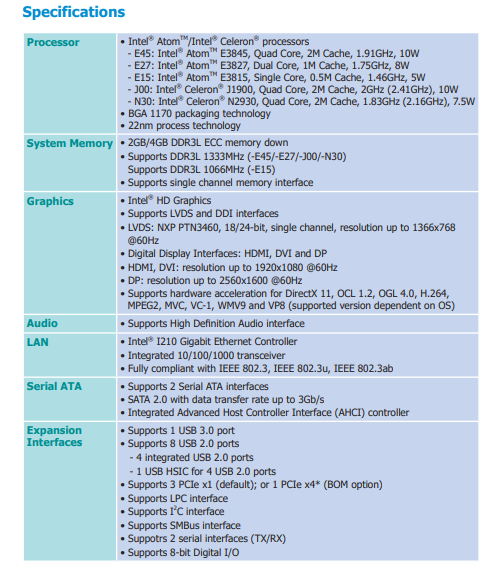

Intel Atom® E3800 系列
1、单信道 DDR3L 1333MHz ECC 板载内存 至4GB
2、多重扩充讯号: 3 PCIe x1, 2 SATA 2.0
3、1 LVDS, 1 DDI (HDMI/DVI/DP)
4、丰富 I/O: 1 Intel 网口, 1 USB 3.0, 8 USB 2.0
5、15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
