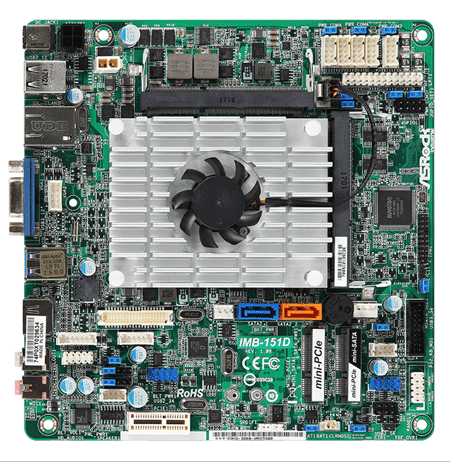

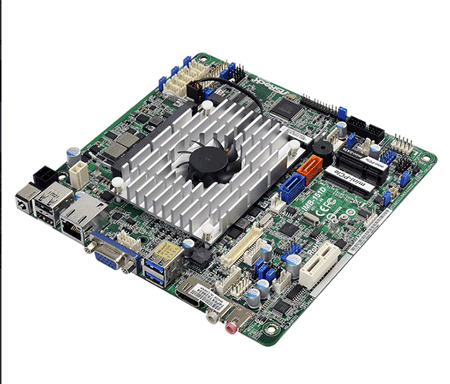

IMB-151D Rev 1.10 Mini-pcle

产品分类：Mini-ITX主板
Intel® Baytrail SoC Processor J1900
Supports Dual Channel DDR3L SO-DIMM 1333, up to 8GB

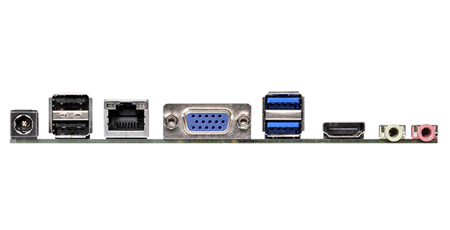

1 x HDMI, 1 x VGA, 1 x LVDS
4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
1 x Realtek LAN
1 x TPM Header
12~19 V DC-in
