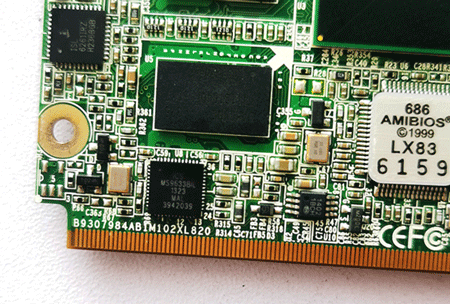

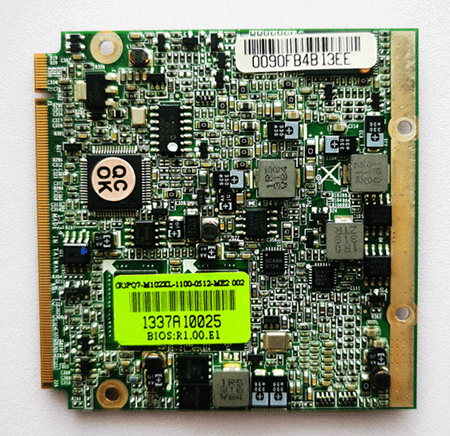

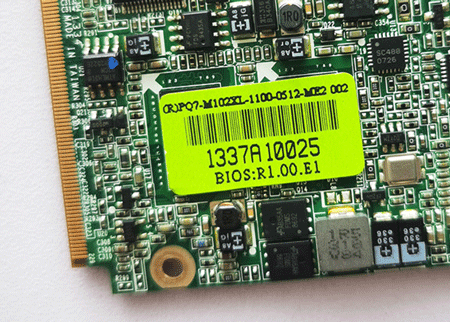

PQ7-M102XL-1100 1337A10025 BIOS:R1:00.E1 B9307984ABIM102XL820

产品分类：CPU主板

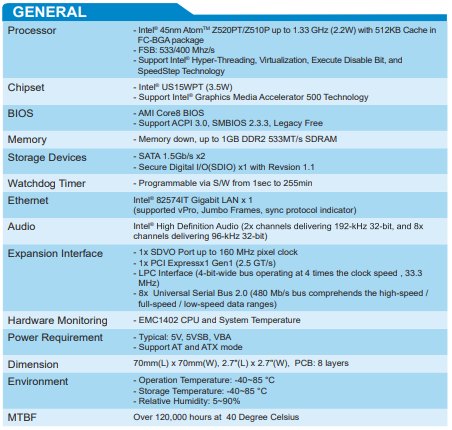

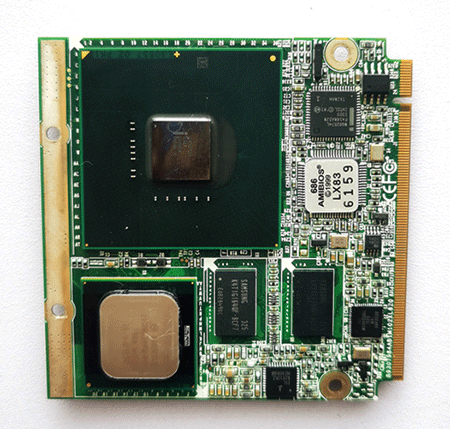

1、AtomTM Z510PT (1.1GHz) or Z520PT (1.33GHz)
2、Intel® US15WPT integrated GMA 500 Graphic,full hardware acceleration of H.264, MPEG2,VC1 and WMV9 is supported
3、Support Two SATA Ports from Qseven GoldenFinger
4、Ultra Low CPU and SCH TDP (Under 5W)for fan-less application
5、Internal LVDS and SDVO interface for dualindependent display
6、On board 512MB OR 1GB DDR2 supported
7、4Mbit flash ROM for easy BIOS upgrade and video BIOS for DFP
