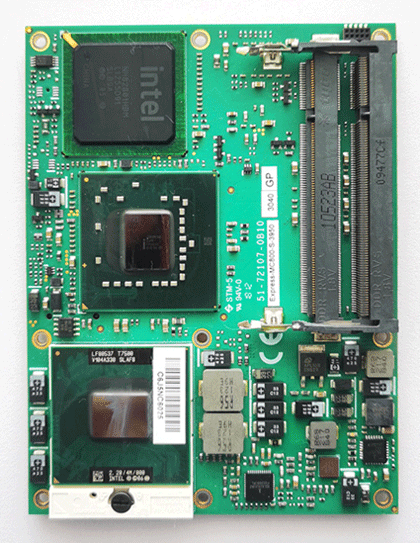

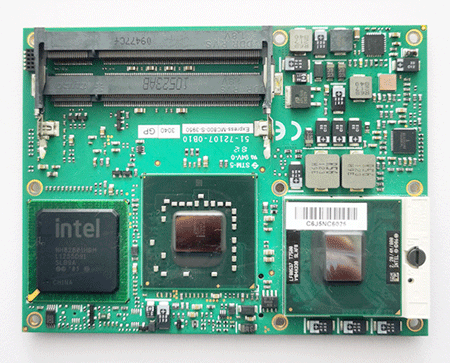

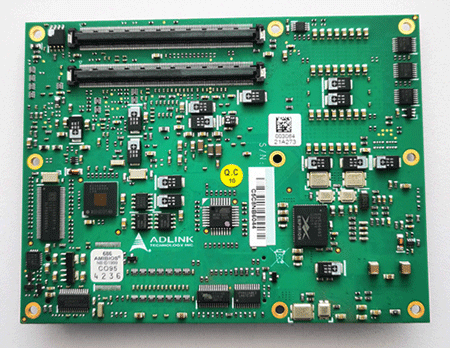

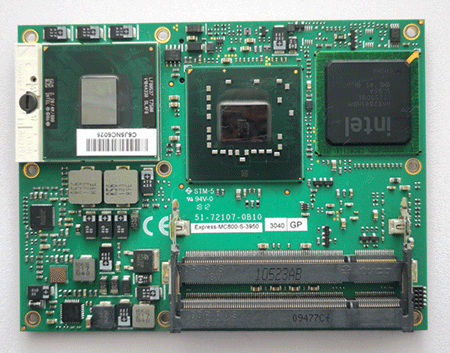

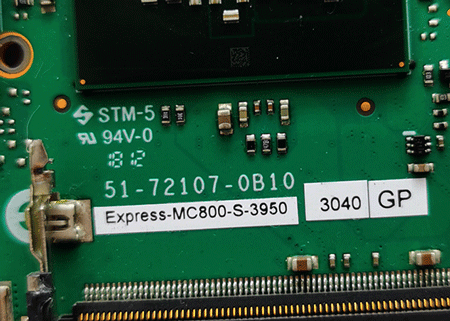

51-72107-0B10 Express-MC800 支持Intel® Core™2 Duo处理器，采用GME965/ICH8-M芯片组的COM Express™模块

产品分类：COM-Express Basic (125x95 mm)

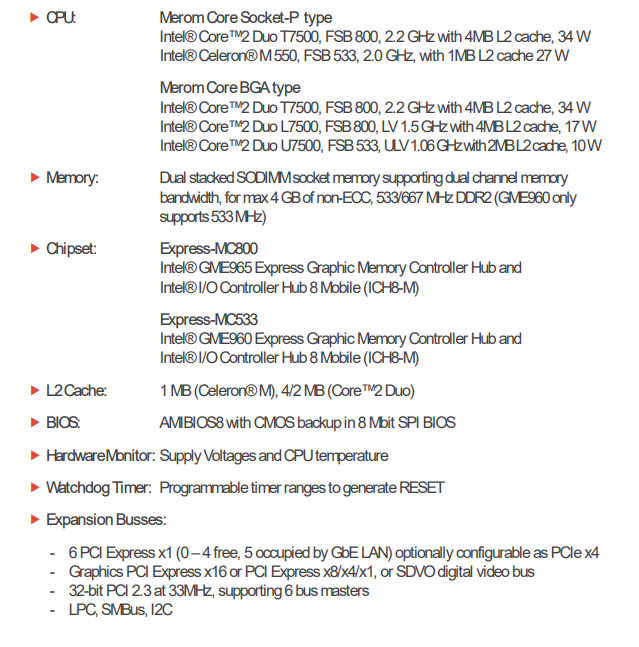

Intel® Core™2 Duo处理器(最大至2.2 GHz)
1、面向嵌入式应用的Intel® GME965/ICH8M芯片组
2、支持4 GB 800MHz DDR2 SODIMM
3、可外扩充5个PCIe x1总线及1个PCIe x16(或x8)高速图像总线
4、支持双通道24位LVDS显示，并支持视频输出
5、SATA-300, PATA，千兆以太网，USB 2.0
