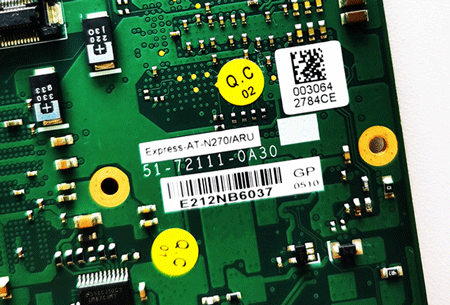

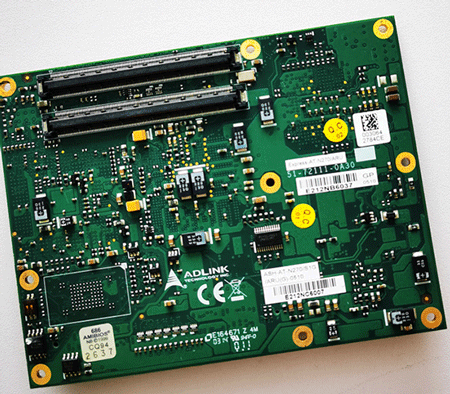

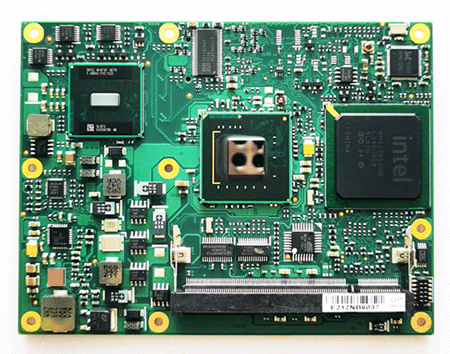

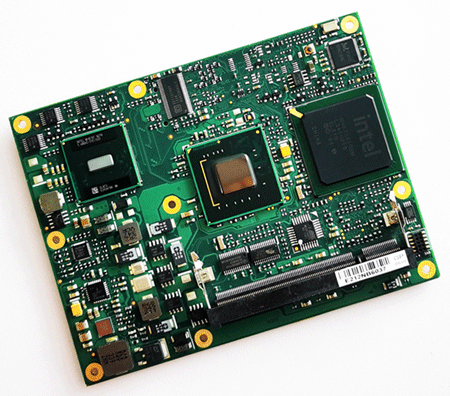

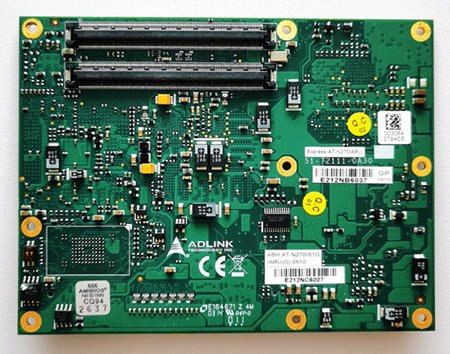

51-72111-0A30 Express-AT-N270/ARU COM Express® Module with Intel® Atom™ Processor N270 and 945GSE / ICH7-M Chipset

产品分类：COM-Express Compact (95x95 mm)
1、Intel® Atom™ processor N270 at 1.6 GHz
2、Intel® 945GSE / ICH7-M chipset
3、SODIMM for up to 2 GB DDR2 at 533 MHz
4、Three PCIe x1 (optional 4 x1 or 1 x4)
5、High resolution VGA, single/dual 18-bit LVDS and TV-out (SDTV and HDTV)
6、SATA, IDE (PATA), Gigabit LAN, USB 2.0
7、Optional 512MB~8GB IDE-based Solid State Disk
