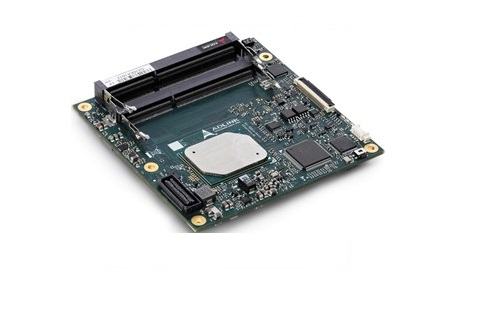

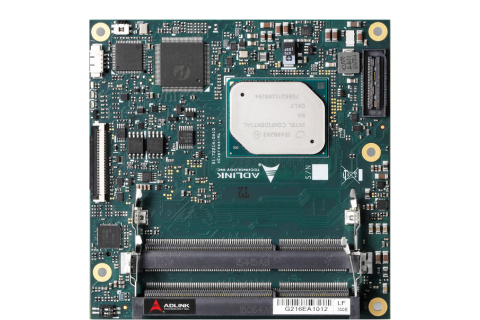

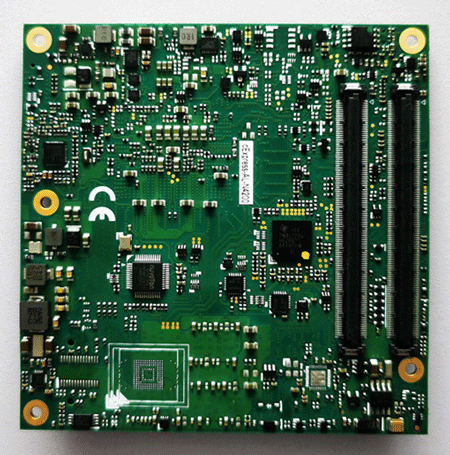

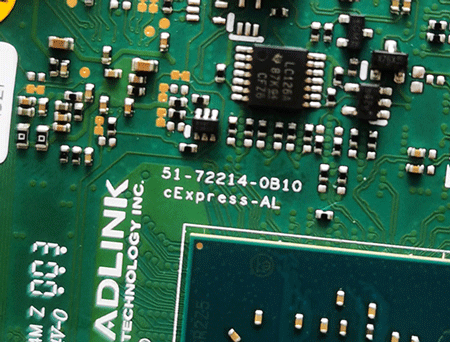

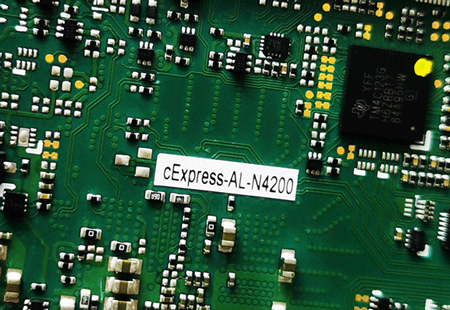

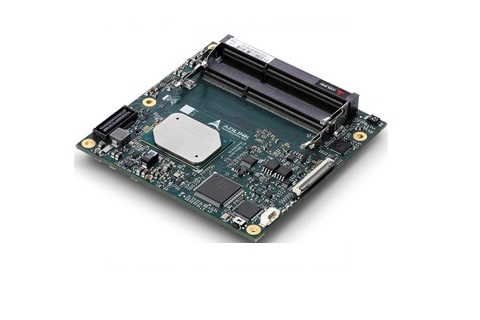

51-72214-0B10 CExpress-AL CExpress-AL-N4200 COM Express Compact Size Type 6 Module Intel Atom® E3900 series, Pentium®, and Celeron® SoC (formerly Apollo Lake)

产品分类：CPU主板
1、Intel Atom® E3900 series (formerly Apollo Lake) and Pentium®/Celeron® SOC, supporting full virtualization (VT-d/VT-x)
2、Supports IEEE 1588 Precision Time Protocol (PTP)
3、Up to 8GB dual channel non-ECC DDR3L at 1867/1600 MHz
4、Two DDI channels, one LVDS (VGA/eDP by build option), supports up to 3 independent displays
5、Up to five PCIe x1 Gen2 (by PCIe bridge IC, build option)
6、Two SATA 6 Gb/s, three USB 3.0/2.0, five USB 2.0 and eMMC 5.0 (build option)
7、Extreme Rugged operating temperature: -40°C to +85°C (build option for E3900 series SKUs)
