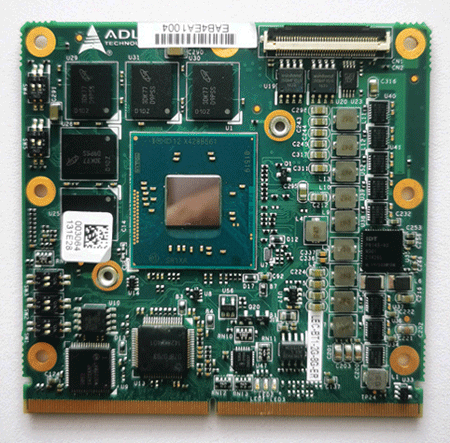

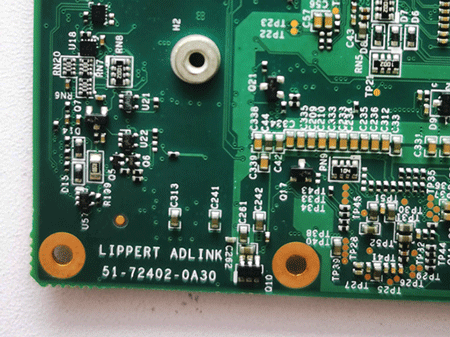

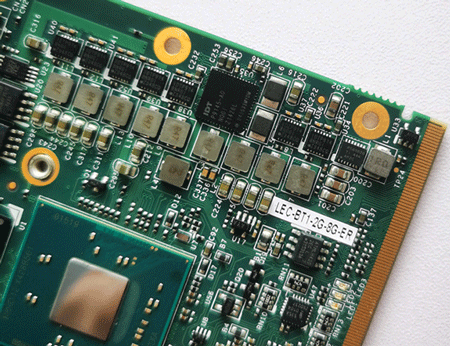

51-72402-OA30 LEC-BT1-2G-8G-ER

产品分类：其他主板

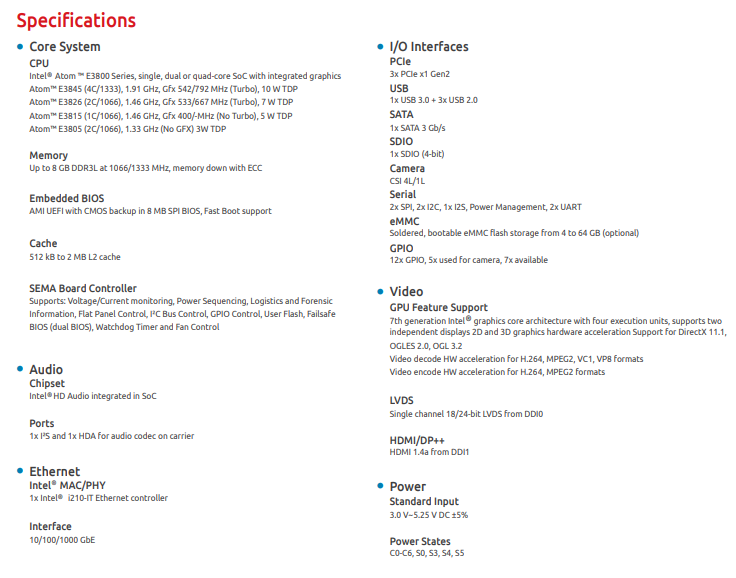

1、Single, dual or quad-core Intel® Atom™ Processor E3800 Series System-on-Chip
2、Up to 8 GB DDR3L at 1066/1333 MHz (ECC)
3、 HDMI and LVDS, onboard eMMC
4、 GbE, camera interface
5、1x SATA 3Gb/s, 1x USB 3.0, 3x USB 2.0
6、 max. 12x GPIO

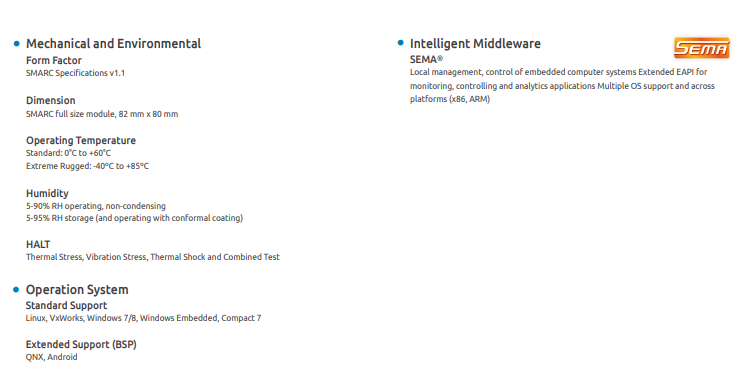

7、Extreme Rugged™ operating temperatur e: -40°C to 85°C
