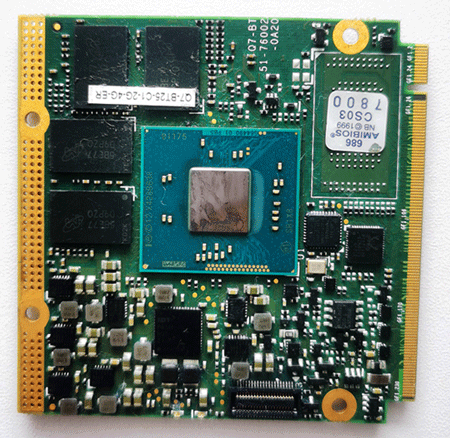

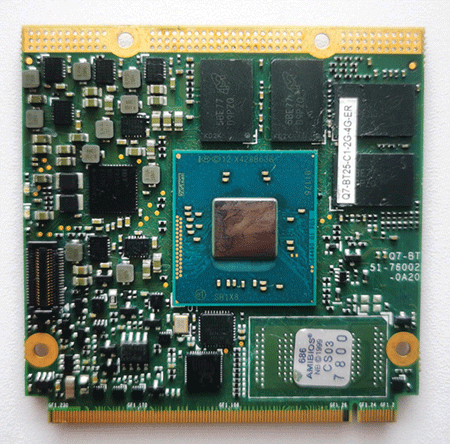

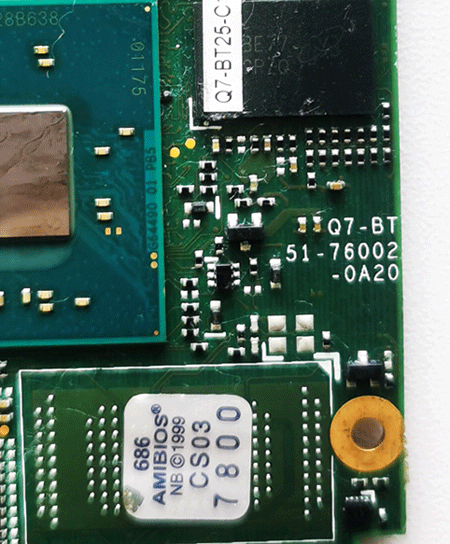

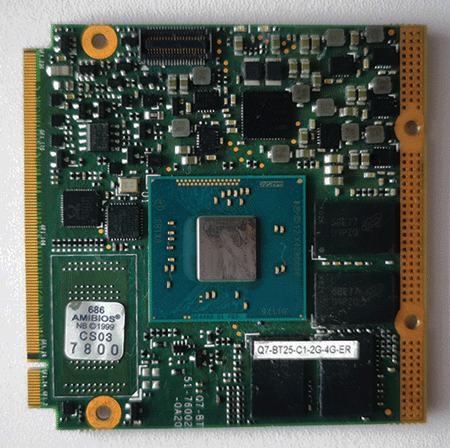

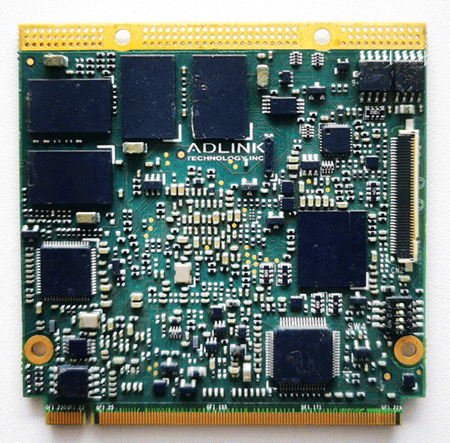

51-76002-OA20 Q7-BT25-C1-2G-4G-ER Qseven Module with 4th Generation Intel Atom® Processor E3800 Series SoC (formerly codename: BayTrail)

产品分类：其他主板

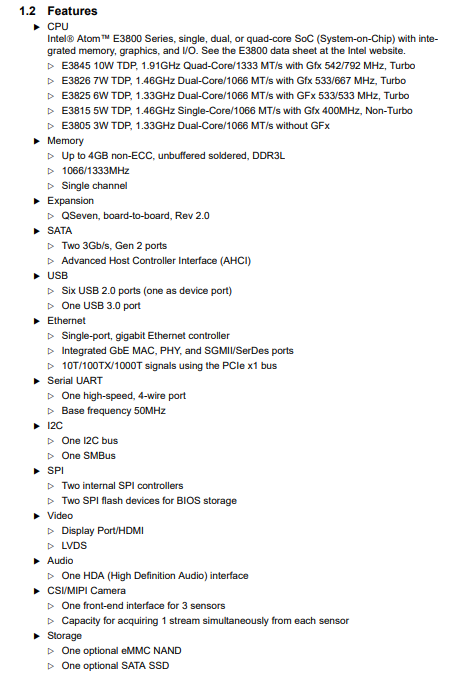

1、Single, dual or quad core 4th Generation Intel® Atom™ Processor E3800 Series System-on-Chip
2、Up to 4 GB DDR3L at 1066/1333 MHz
3、HDMI 1.4b and dual channel LVDS
4、GbE, MIPI CSI camera interface
5、2x SATA 3Gb/s or 1x SATA and 1x SATA-SSD
6、Extreme Rugged™ -40°C to +85°C or commercial temp. 0°C to +60°C
7、Supports Smart Embedded Management Agent (SEMA) functions 2.5 or 3.0. Go to SEMA API
8、Go to Yocto BSP
