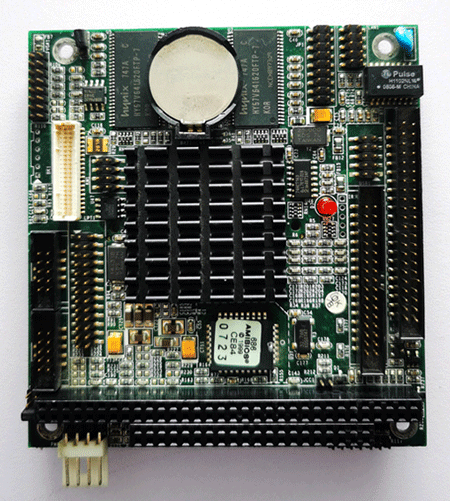

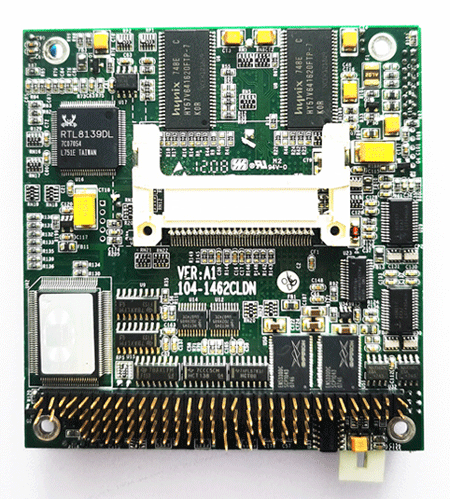

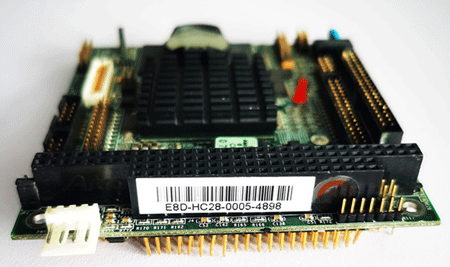

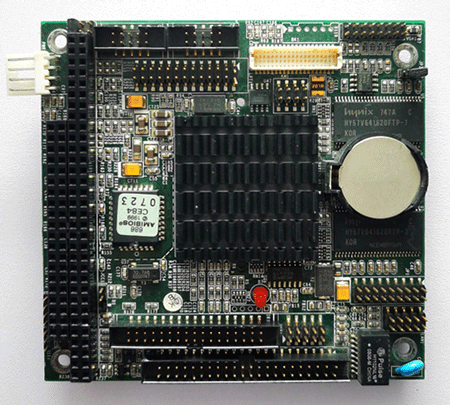

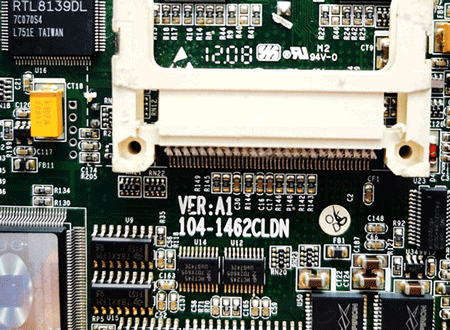

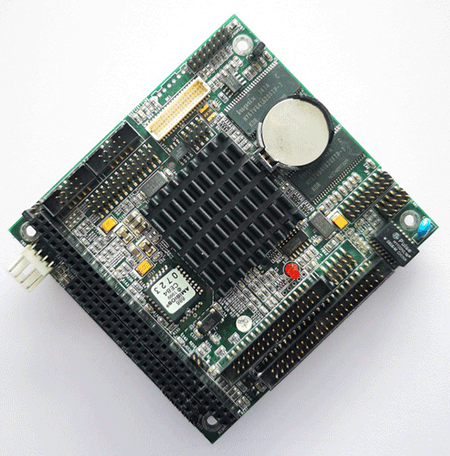

104-1462CLDN E8D-HC28-0005-4898 PC/104 wide temperature 486-level SBC with STPC Atlas 133MHz CPU/Memory/LCD/VGA/SSD/LAN

产品分类：其他主板

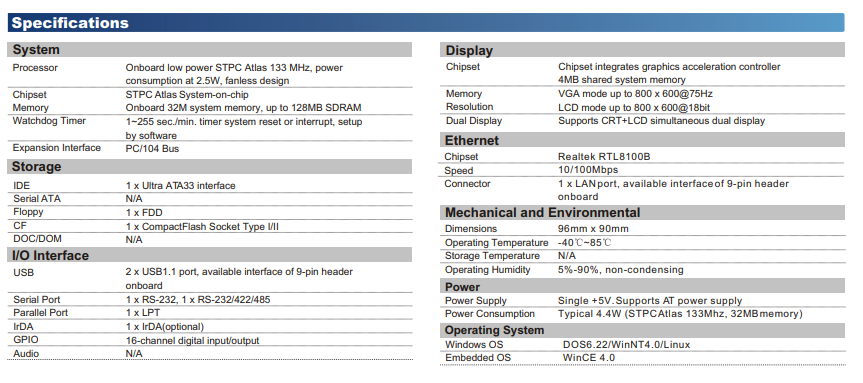

1、Onboard low power STPC Atlas SoC 133MHz Processor, 2.5W
2、Onboard 32M system memory, up to 128MB SDRAM
3、Supports 1 x 10/100Mbps Ethernet interface
4、Supports 2 x USB1.1, 2 x COM, 1 x LPT, 1 x CF, 1 x IDE, 1 x FDD, 1 x IrDA
5、Supports CRT/TFT LCD synchronous output
